NATO reporting name: AS-18 Kazoo
Αlso known as: -
Entered service: 1989
Carrier aircraft launched, designed to kill sea surface radio-contrast targets with RCS > 300 m2 (ranging from boat to cruiser) day and night in simple and adverse weather in the high seas or near the coastline.
Technical specifications
| DESIGNER | MKB Raduga |
| COUNTRY | Russia |
| TYPE |
Anti-ship missile
|
| Aircraft-bearer (aerial means) |
Su-24M, Su-17M3, Su-22M4, Su-25, Su-30, Su-34, Su-27SM, Su-35, Su-57
|
|
POWER-PLANT
|

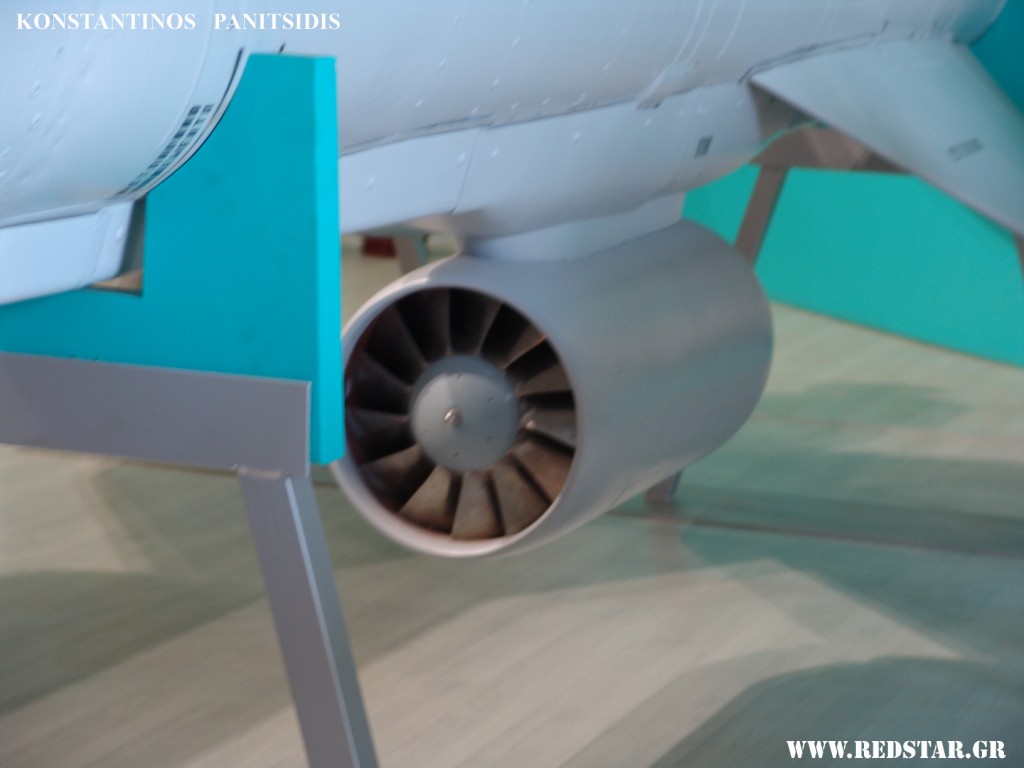

Turbofan engine type 36ΜΤ
|
|
Thrust, kgf
|
- |
|
DIMENSIONS
|
|
|
Length, m
|
5,7 |
| Width, m | - |
| Height, m | - |
| Wing span, m | 1,3 |
| Fin span, m | - |
| Diameter, m | 0,38 |
| - front section | 0,42 |
|
WEIGHT
|
|
|
Maximum missile weight, kg
|
<930
|
| Warhead weight, kg |
90 (320)
|
|
PERFORMANCE
|
|
|
Maximum speed, km/h
|
900 - 1.050 |
|
Permissible height of use of the missile, km
|
0,2 - 11 |
|
Maximum launch range, km
|
|
|
- Destroyer and cruiser type targets (RCS > 5.000 m2), km
|
285 |
|
- Boat type targets (RCS > 300 m2), km
|
145 |
|
Missile altitude, m
|
|
| - cruising (over the sea surface), m | 10-15 |
| - target area, m | 4-7 |
| Hit probability: | |
| - destroyer and cruiser type targets | 0,9-0,96 |
| - boat type targets | 0,7-0,93 |
|
Min launch range, km
|
5 - 25 |
|
Permissible speed of the aircraft before using the missile, km/h
|
600 - 1.100 |
|
Circular error probable, m
|
2 - 3 |
| Target aspect ratio, degrees | up to ±45o |
|
Seeker
|
- |
|
Warhead type
|
High-explosive - penetrating |
|
Guidance system
|
Inertial navigation system + global navigation satellite system + active radar. |

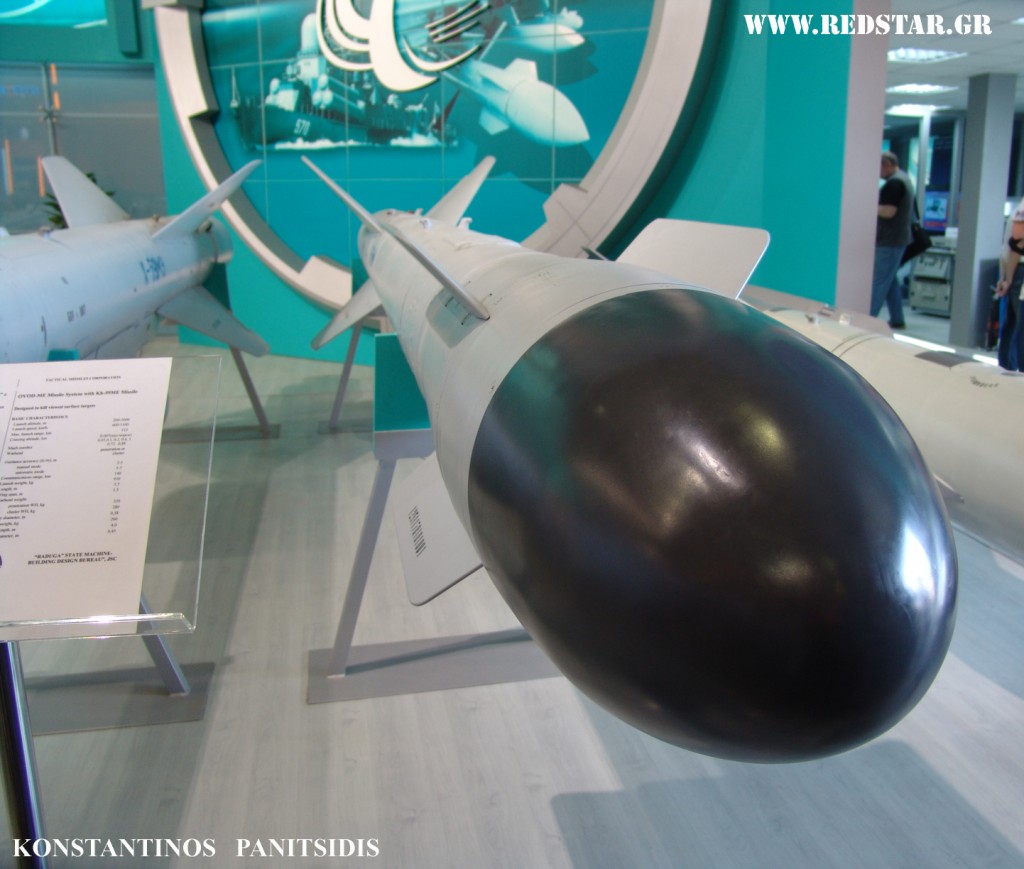

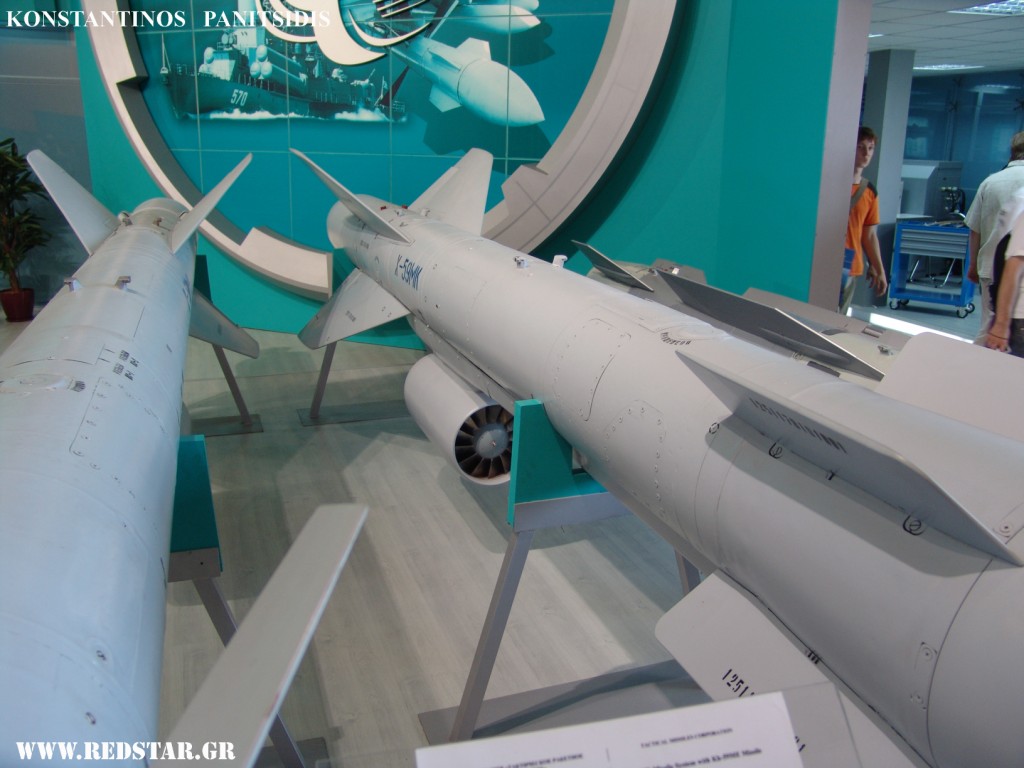

Photos X-59MK (Kh-59MK)
