NATO reporting name: -
Αlso known as: Izdeliye 77AD
Entered service: 2014-2015
It was designed and developed to attack different types of ships, such as transport ships etc.
Technical specifications
| DESIGNER | "Zvezda-Strela" Design buream, Tactical Missiles Corporation JSC |
| COUNTRY | Russia |
| TYPE |
Anti-ship missile
|
| Aircraft-bearer (aerial means) |
Su-30MK/MKI/MKM/MK2, Su-35, Su-34, Su-24M, MiG-29K, MiG-29KUB, MiG-35 and other aircraft
|
|
POWER-PLANT
|
Two-stage solid propellant rocket
|
|
Thrust, kgf
|
- |
|
DIMENSIONS
|
|
|
Length, m
|
4,7 |
| Width, m | - |
| Height, m | - |
| Wing span, m | 0,954 |
| Fin span, m | - |
| Diameter, m | 0,360 |
|
WEIGHT
|
|
|
Maximum missile weight, kg
|
715
|
| Warhead weight, kg |
110
|
|
PERFORMANCE
|
|
|
Maximum speed, km/h
|
- |
|
Permissible height of use of the missile, km
|
0,1 - 15 |
|
Launch range, km (H=15 km, Mach=1,5), km
|
until 120 - 160 |
|
Minimum permissible missile launch range, km
|
7 |
|
Permissible speed of the aircraft before using the missile, km/h
|
650 - 1.250 |
|
Circular error probable, m
|
2 - 5 |
|
Seeker
|
- |
|
Warhead type
|
High-explosive - piercing |
|
Guidance system
|
inertial + active radar |

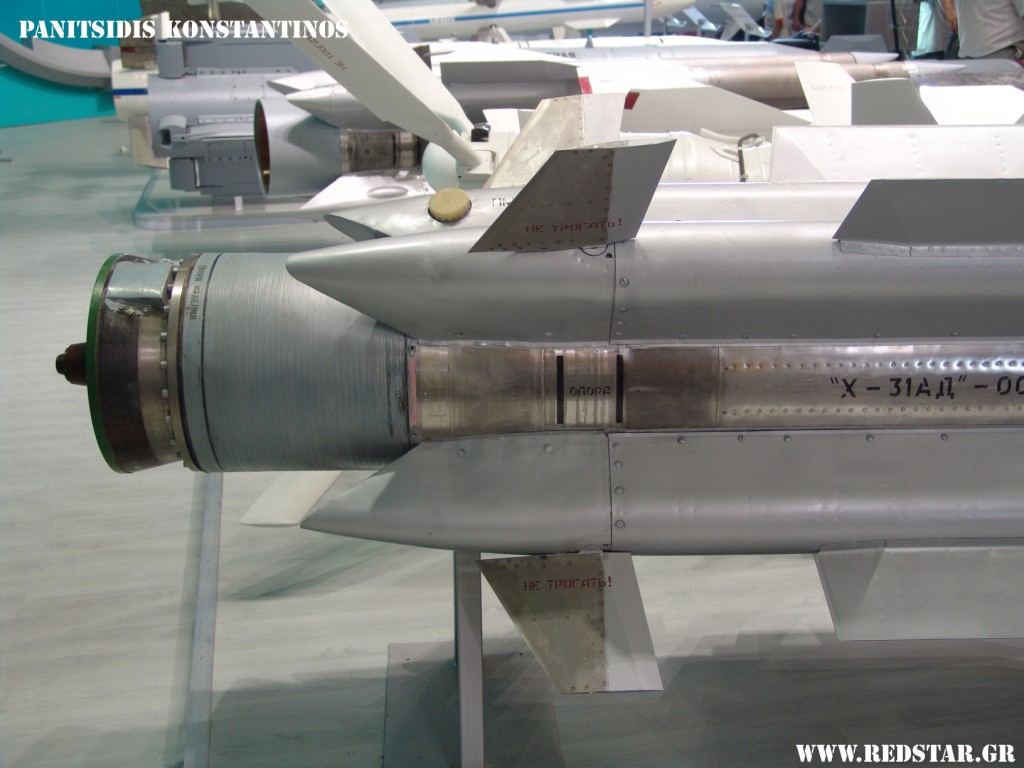

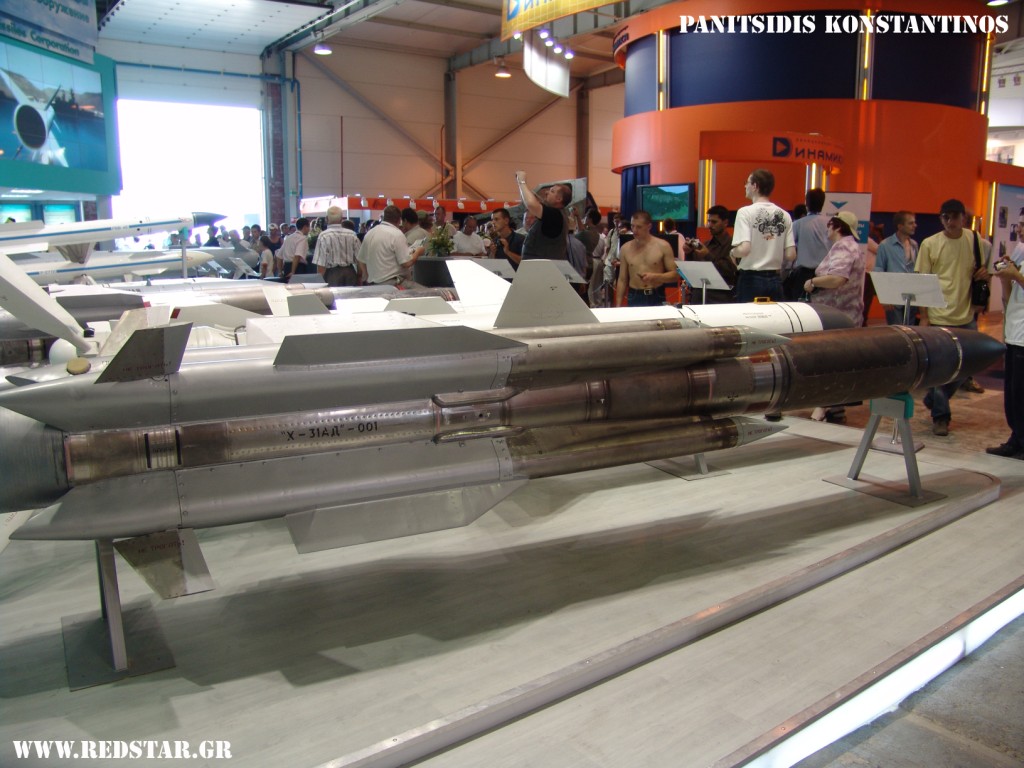

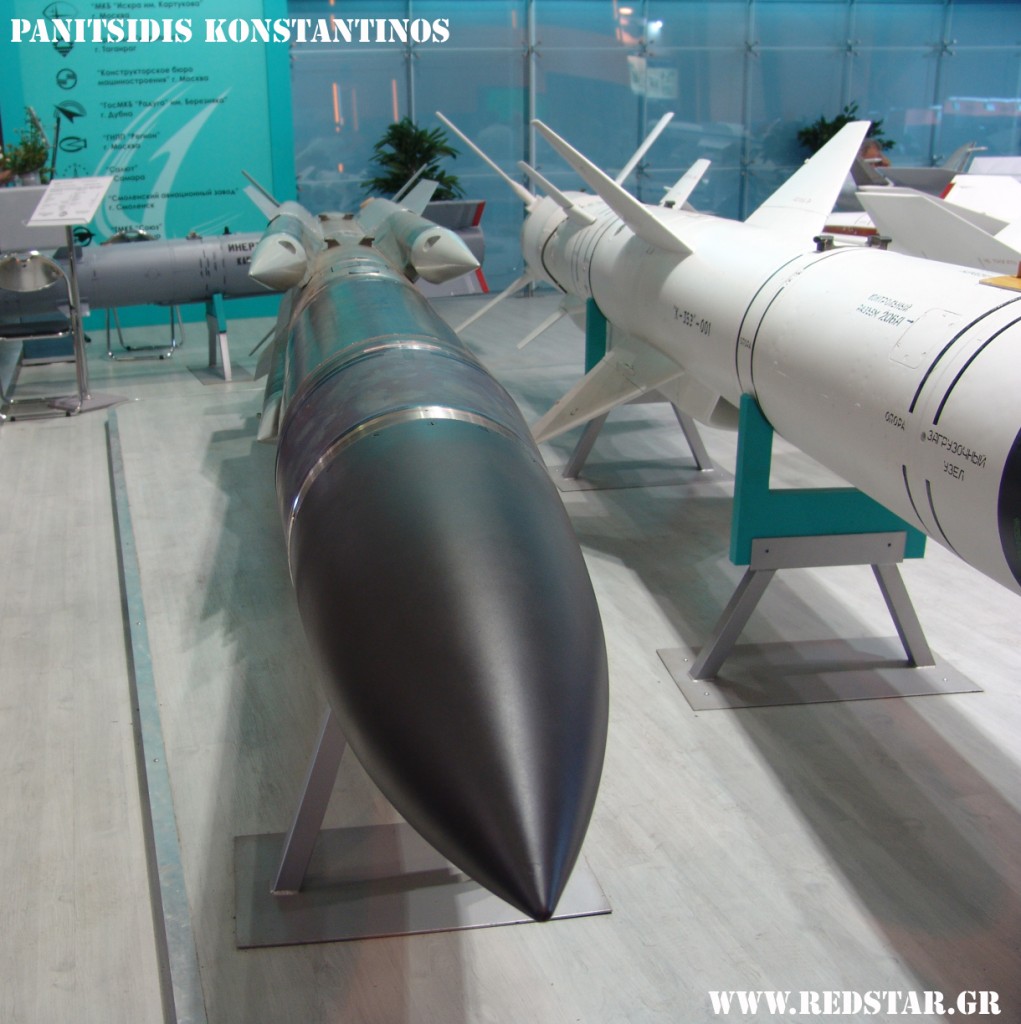

Photos X-31AD (Kh-31AD)
