NATO reporting name: Fitter-E
Internal factory name: product "S-52U"
Two-seat, single-engine jet combat training aircraft. The first flight was made on August 15, 1975. In 1976, the first Su-17UM combat training aircraft were delivered to the Air Force.
The aircraft was created on the basis of the Su-17M, was mass-produced from 1976 to 1982. Su-17UM was in service until 2016.
Technical specifications
| DESIGNER | OKB Sukhoi |
| COUNTRY | Russia |
| TYPE |
Trainer and combat aircraft
|
| CREW | 1 |
| POWER-PLANT | One turbojet engine AL-21F-3 |
| Thrust, kgf | |
| - with afterburning | 1x11.200 |
| - without afterburner | 1x7.800 |
| DIMENSIONS | |
| Length, m | 19,02 |
| Height, m | 5,13 |
| Wing span, m | - |
| - minimum | 13,68 |
| - maximum | 10,025 |
| Wing area, m2 | - |
| - minimum | 38,49 |
| - maximum | 34,45 |
| WEIGHT | |
| Maximum take-off, kg | 19.630 |
| Normal take-off, kg | - |
| Empty aircraft, kg | 11.550 |
| Internal fuel, l | 4.020 |
| Weight of transported fuel with external tanks, l. | 2.875 |
| Warload, kg | 2.400 |
| PERFORMANCE | |
| Maximum speed, km/h | 2.230 |
| Maximum speed in low height, km/h | 1.350 |
| Range, km | |
| - without external fuel tanks | 1.500 |
| - with external fuel tanks | 2.500 |
| Combat range, km | - |
| Service ceiling, m | 14.000 |
| ARMAMENT | One 30mm cannons NR-30 with 80 rounds. Number external hardpoints: 8. Transportation of weapons: AAM R-60, ASM Kh-25. Free fall boms up to 500 kg, guided air bombs KAB-500Kr. Rokets UB-32-57, UB-16-57UM, B-8M-1, launcher APU-68U, S-25. |

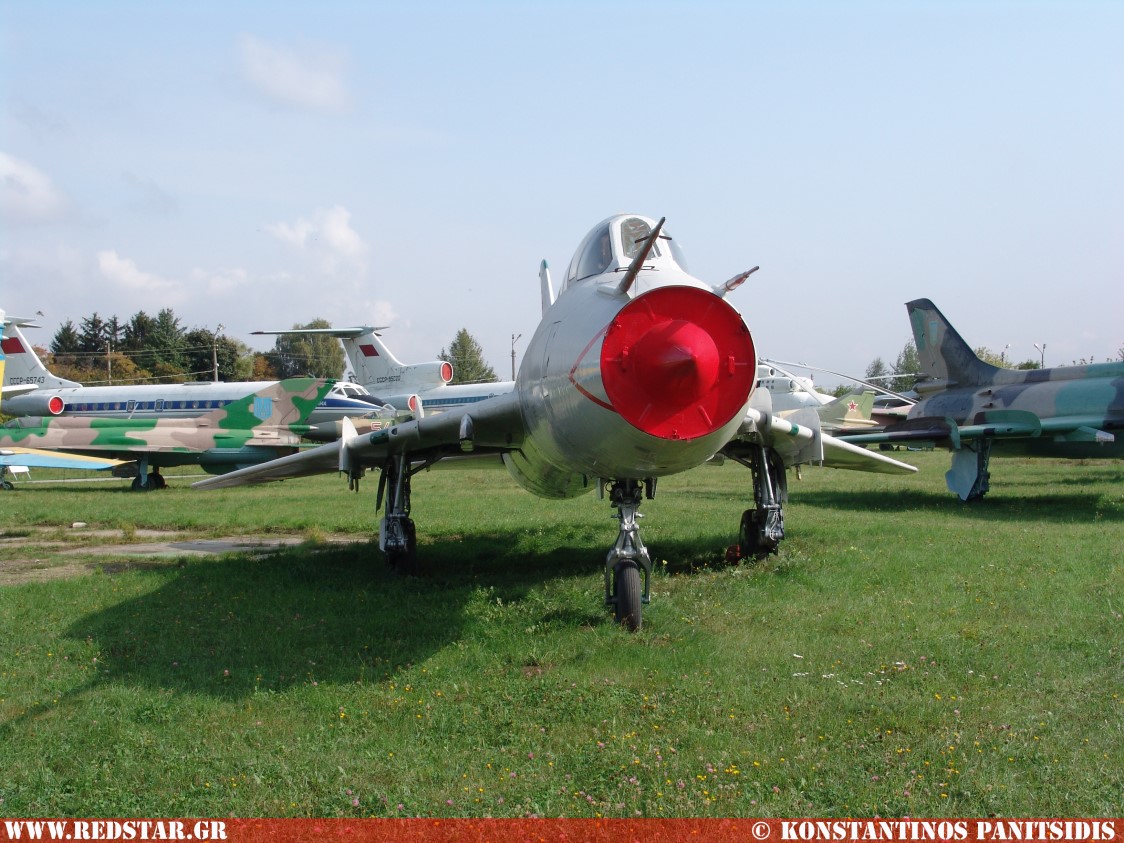

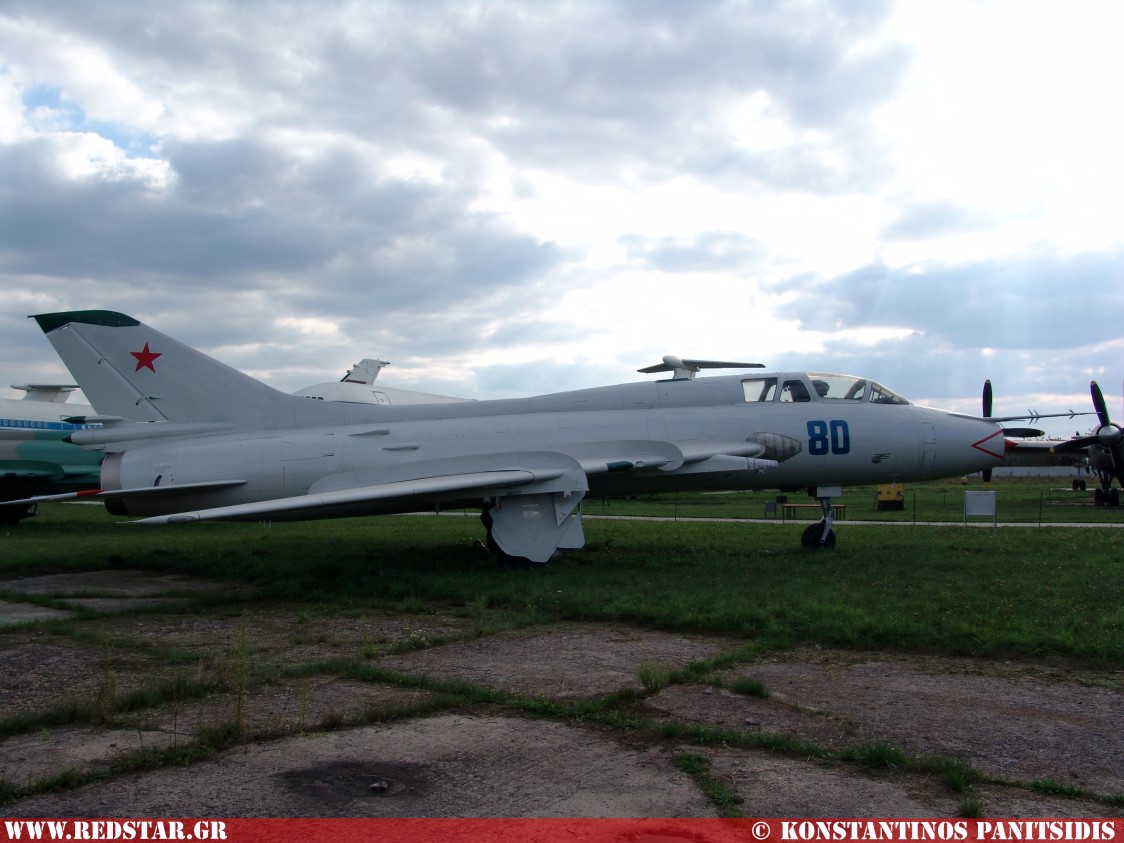

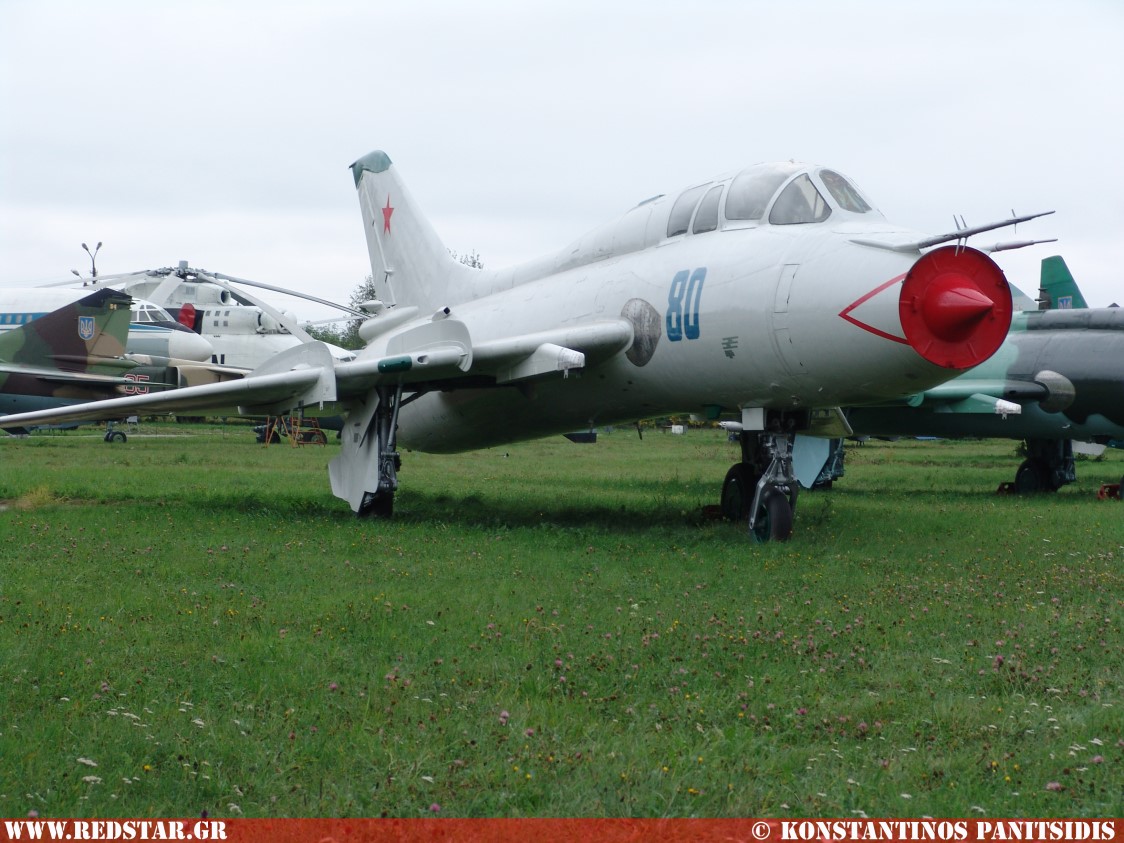

Photos Su-17UM Fitter-E, Oleg Antonov state aviation museum, Ukraine, Kyiv.
