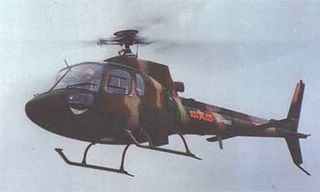

The first twin-engine Z-11 (AS.350 Ecureuil) flew for the first time in 1997. This version was developed by Harbin based on the Eurocopter AS.350 Ecureuil (AS.550).
Technical specifications
| DESIGNER | Harbin (HAMC) |
| COUNTRY | China |
| TYPE |
Multipurpose helicopter
|
| CREW | 1 |
| POWER-PLANT | Two Liming WZ-8D turboshaft engines |
| Power, h.p. | 1x693 |
|
DIMENSIONS
|
|
|
Length, m
|
10,93
|
|
Main rotor diameter, m
|
10,69 |
|
Tail rotor diameter, m
|
1,86
|
|
Height, m
|
3,34
|
| WEIGHT | |
| Maximum take-off, kg | 2.200 |
| Normal take-off, kg | - |
| Empty aircraft, kg | 1.169 |
| Internal fuel, kg | - |
| Payload, kg | |
| - passengers | 6 |
| - freight in cabin | 900 |
| - with on hook | 1.135 |
| PERFORMANCE | |
| Maximum speed, km/h | 272 |
| Cruising speed, km/h | 230 |
|
Combat range, km
|
450 |
| Range, km | 655 |
|
Service ceiling, m
|
4.500
|
|
Static ceiling, m
|
2.870
|
|
Rate of climb, m/min
|
-
|
| ARMAMENT | Doesn't have (defensive). |
