Description
Multichannel mobile medium range air defense missile system.
Designed to protect sensitive land forces, rear echelon sites and vital national assets.
Matches various threats including tactical ballistic missiles, strategic and tactical aircraft, helicopters, cruise missiles, air-based missiles and guided bombs in severe environments.
Capable of attacking sea- and land- based targets.
| Performance | |
| Aerodynamic target engagement area: | |
| range | 3 - 45 km |
| altitude | 0,015-25 km |
| Maximum engagement range: | |
| TBM | up to 20 km |
| air-launched CM at 100 m | 15 - 20 km |
| Simultaneous engagement of | up to 24 tgts |
| Single shot kill probability: | |
| tactical acft and helicopter | 0,9 - 0,95 |
| TBM | 0,6-0,7 |
| CM | 0,7-0,8 |
| hovering helicopter | 0,3 - 0,4 |
| Reaction time | 10-12 sec |
| lnto-/out-of-action time | up to 5 min |
 |
 |
| The system includes: Surveillance and target designation radar | The system includes: Illumination and guidance radar |
 |
 |

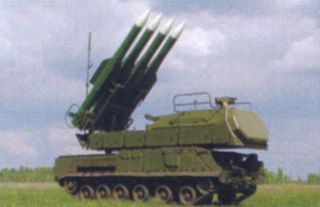

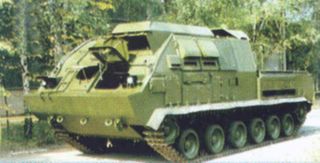

| The system includes: Command post | The system includes: Self-propelled firing units |
 |
| The system includes: Launcher-loaders |
 |
| Surface -to-air missiles 9M317SAM |
| Missiles 9M317SAM | |
| Maximum speed, m/sec | 1.200 |
| Manoeuvrability, g | 30 |
| Length, mm | 5.550 |
| Diameter, mm | 400 |
| Wing span, mm | 860 |
| Weight, kg | 715 |
| Maintenance-free storage life, years |
1 |
