Description

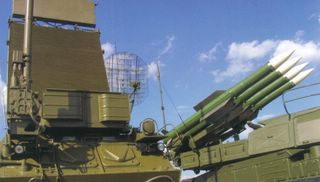

Multifunctional mobile medium range air defense missile system.
Designed to protect sensitive land forces and vital national assets
Able to cope with the most adverse threats including strategic and tactical aircraft,Β Β helicopters, cruise missiles, tactical ballistic and antiradiation missiles.
Capable of attacking sea- and land-based targets.
Features
Capable of engaging six air threats simultaneously.
Excellent immunity to ECM.
Can be integratedΒ Β into other air defense systems.
Efficient protection againstΒ Β high- precision weapons
RapidΒ Β into-actionΒ Β and response times.
Able to operate stand-alone.
High cross-country ability
All-weather operation
 |
 |
| The system includes: Target acquisition radar | The system includes: Command post |
 |
 |

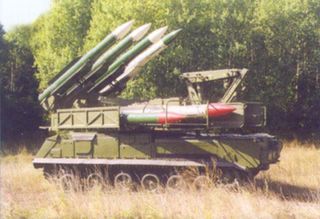

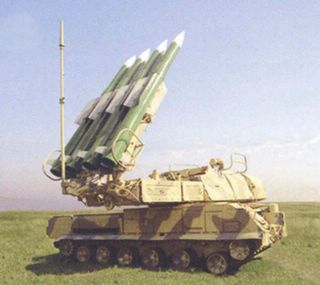

| The system includes: Self-propelled firing units | The system includes: Launcher-loaders |
| Performance | |
| Aerodynamic target engagement area: | |
| range, km | 3-42 |
| altitude, km | 0,015-25 |
| Ballistic target engagement area: | |
| range, km | 3-20 |
| altitude, km | 2-16 |
| Sea target (motor-boat, fregate, destroyer) engagement range, km | 25 |
| Ground target (parked aircraft, launcher, large CP) engagement range, km | 15 |
| Single shot kill probability | 0,9 - 0,95 |
| Target speed (max), m/s | 1.200 |
 |
| Missile 9M317SAM |
| Specification | |
| Maximum speed, m/sec | 1.230 |
| Manoeuvrability, g | 30 |
| Length, mm | 5.550 |
| Diameter, mm | 400 |
| Wingspan, mm | 860 |
| Weight, kg | 715 |
| Maintenance-free storage life, years | 10 |
