The Fire Commander's design is based on the Leopard 1 tank and has a tracked chassis. It has state-of-the-art firefighting equipment. Thanks to its multifunctional application, the Fire Commander can be considered one of the most modern firefighting vehicles of a special type, as it offers the following firefighting capabilities:
- excellent off-road properties
- alternative extinguishing methods
- preparation of fire safety zones
- rescue and recovery
The Fire Commander is a crawler vehicle. Combines traditional and modern firefighting technologies to fight large area fires, e.g.: forests, airports, oil wells, oil and gas pipelines, chemical plants and power plants.
Technical specifications
| DESIGNER | - |
| COUNTRY | - |
| TYPE |
Fire crawler truck
|
| CREW | - |
| POWER-PLANT | MTU MB 833 Ca M/500, 10 cylinders |
| Horsepower,h.p. | 830 |
| Gearbox | ZF with 4 speeds and steering unit with hydraulic torque converter |
| DIMENSIONS | |
| Length with horizontal water cannon approx, mm |
8100
|
| Width, mm |
~3400
|
| Height, mm |
~3550
|
| Ground clearance approx., mm |
~420
|
| WEIGHT | |
| Chassis (with fire extinguishing system and 11.600 liters of water and additives) approx., kg |
50.000
|
| Internal fuel, l | 985 |
| PERFORMANCE |
|
| Maximum speed approx, km/h | 50 |
| Creep speed approx., km/h |
4
|
| Ground pressure approx |
10,5 Ν/cm2
|
| Crossing ditches about, m |
2,5
|
| Turning radius, m |
4,96
|
| Operating Range (Autonomy) | |
| Climbing approx. 50% - on road approx., km | 450 |
| Side slope approx 25% - off road approx, km | 250 |
| ARMAMENT |
Doesn't have (defensive).
|

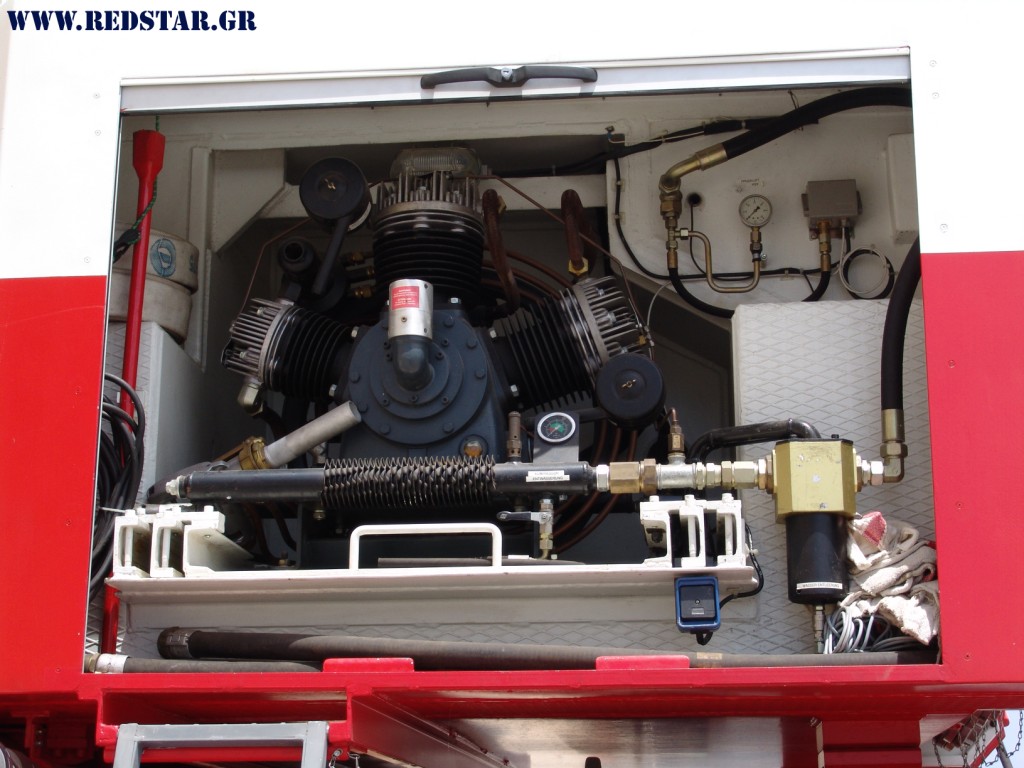

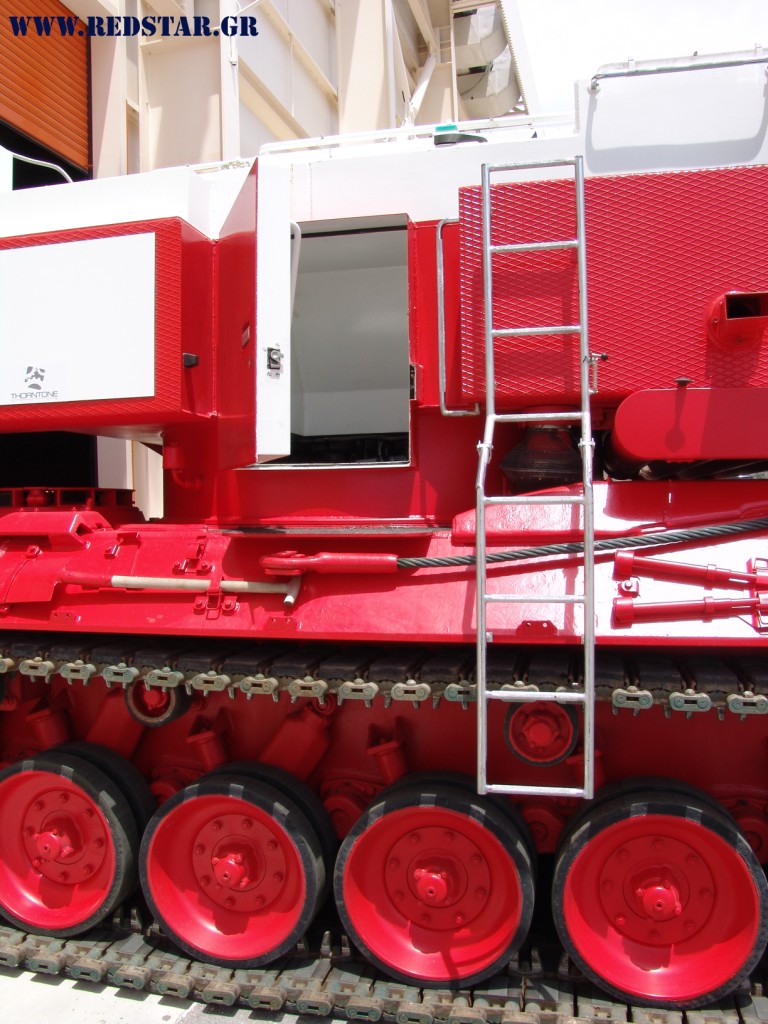

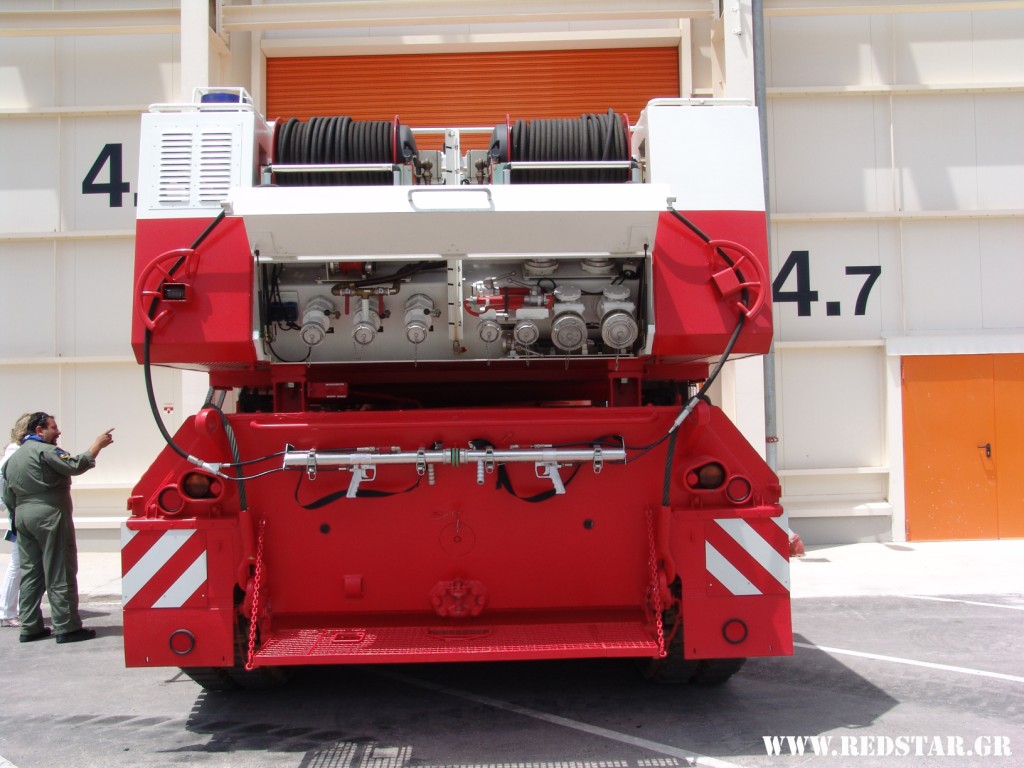

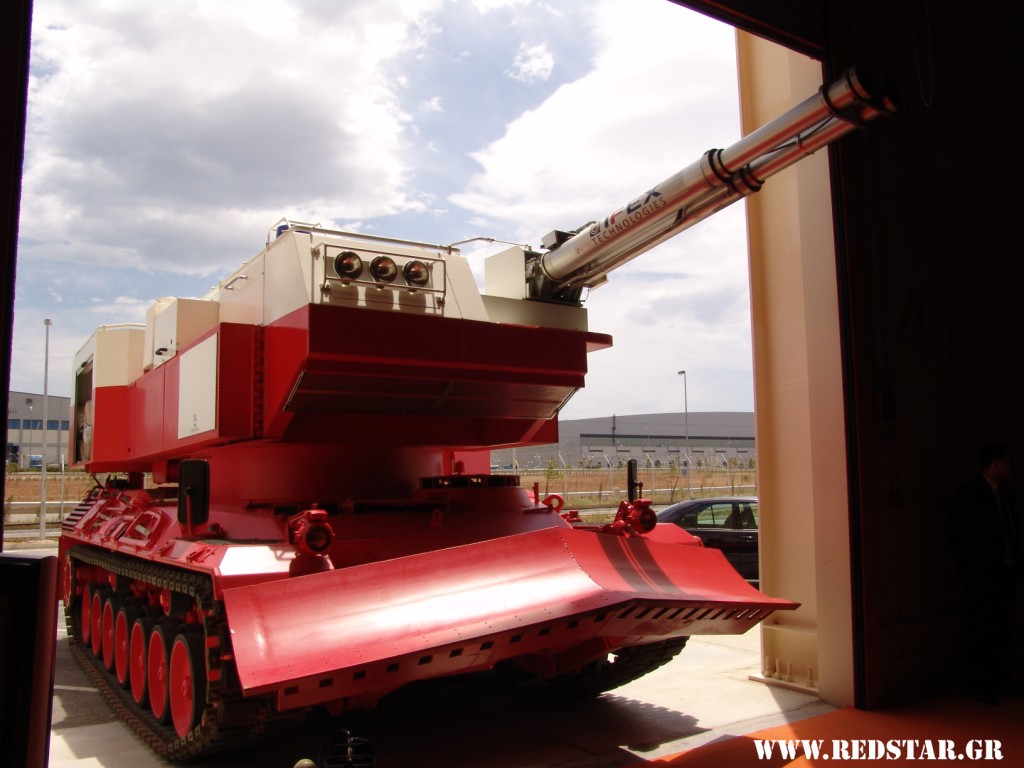

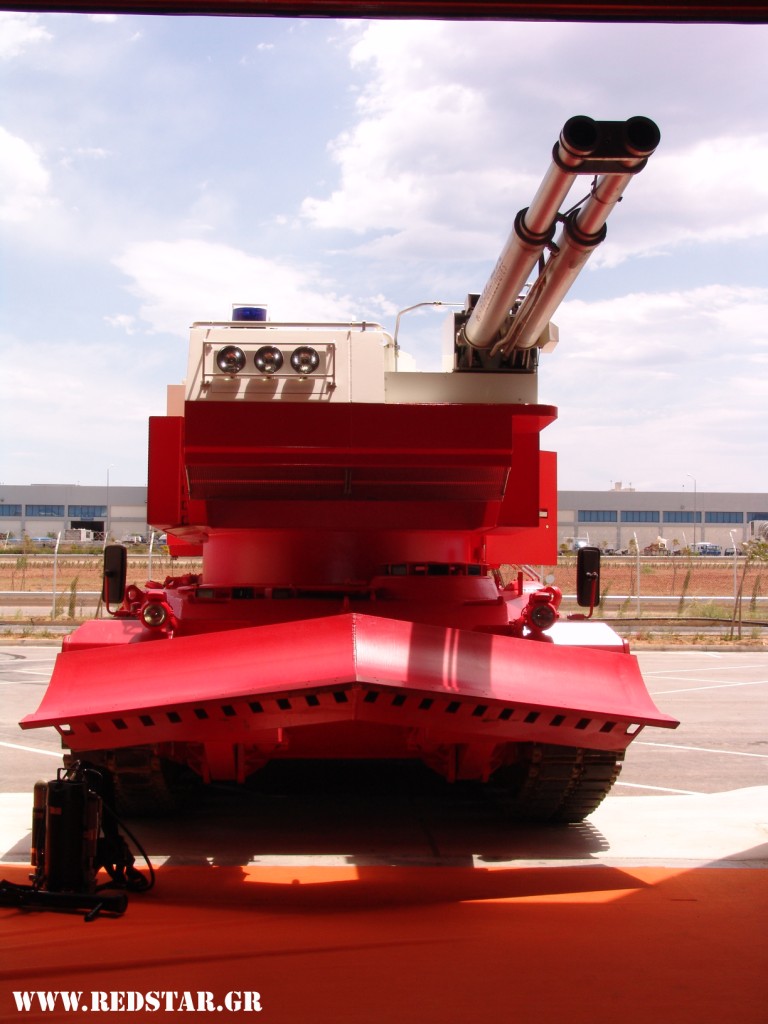

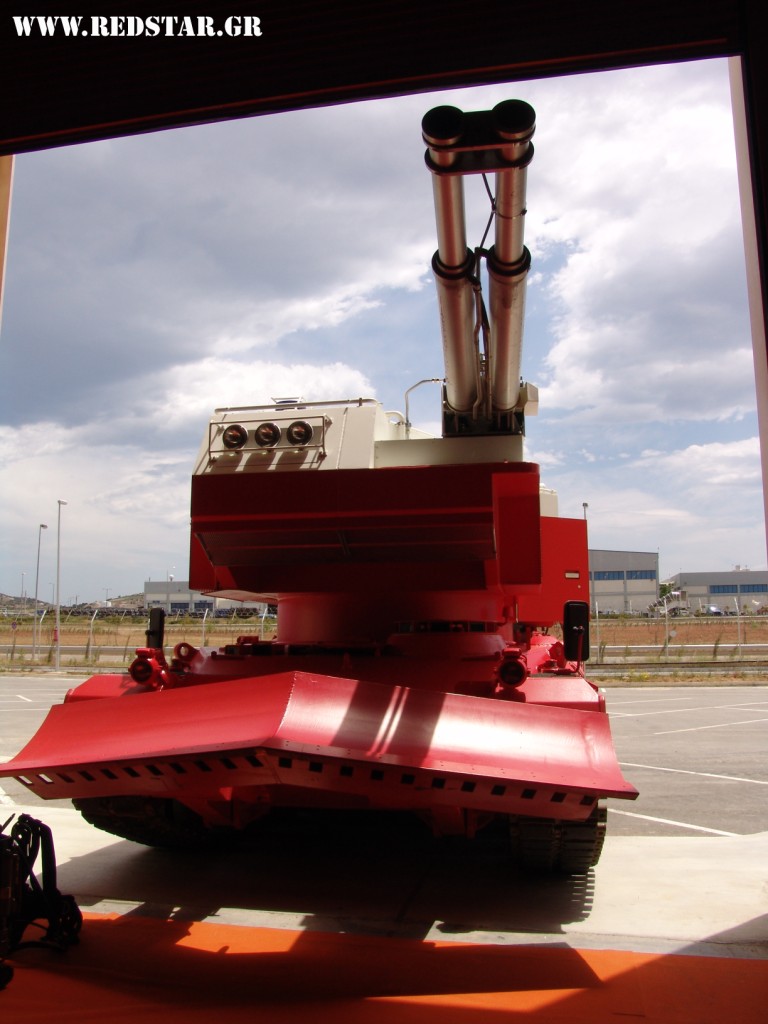

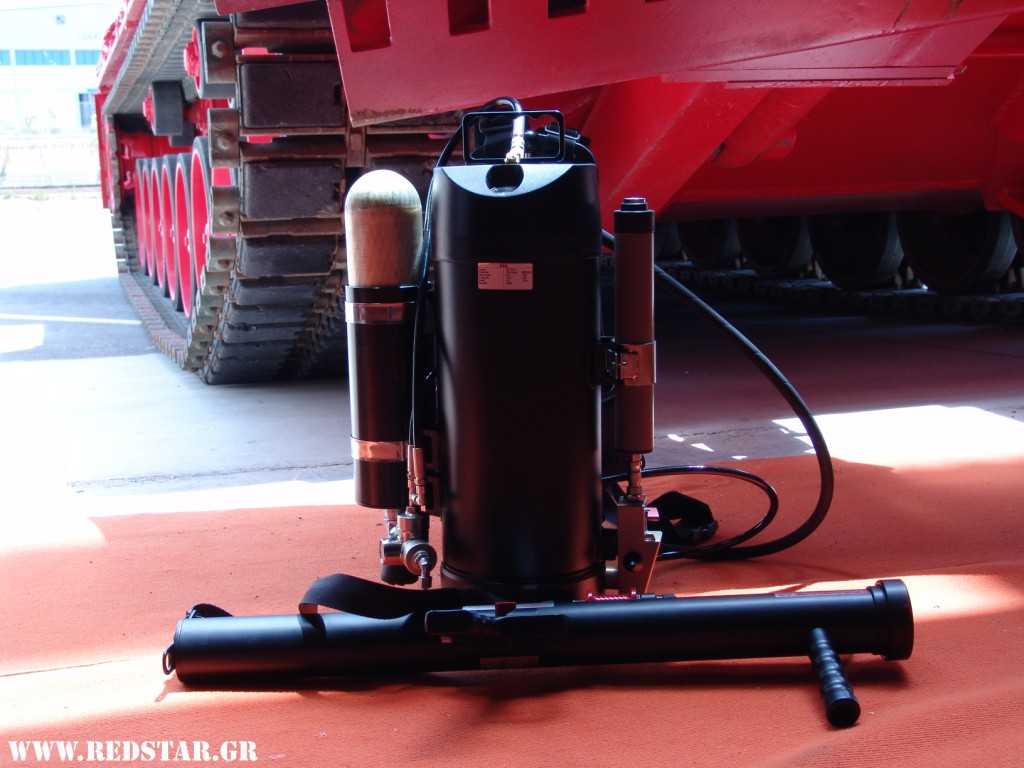

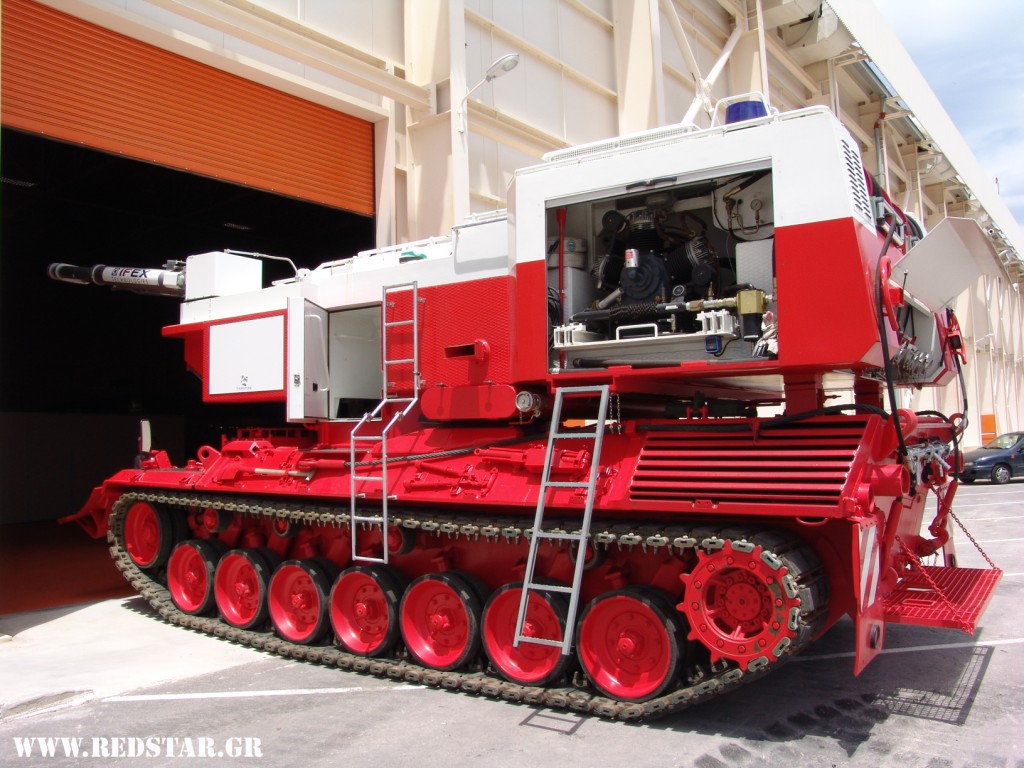

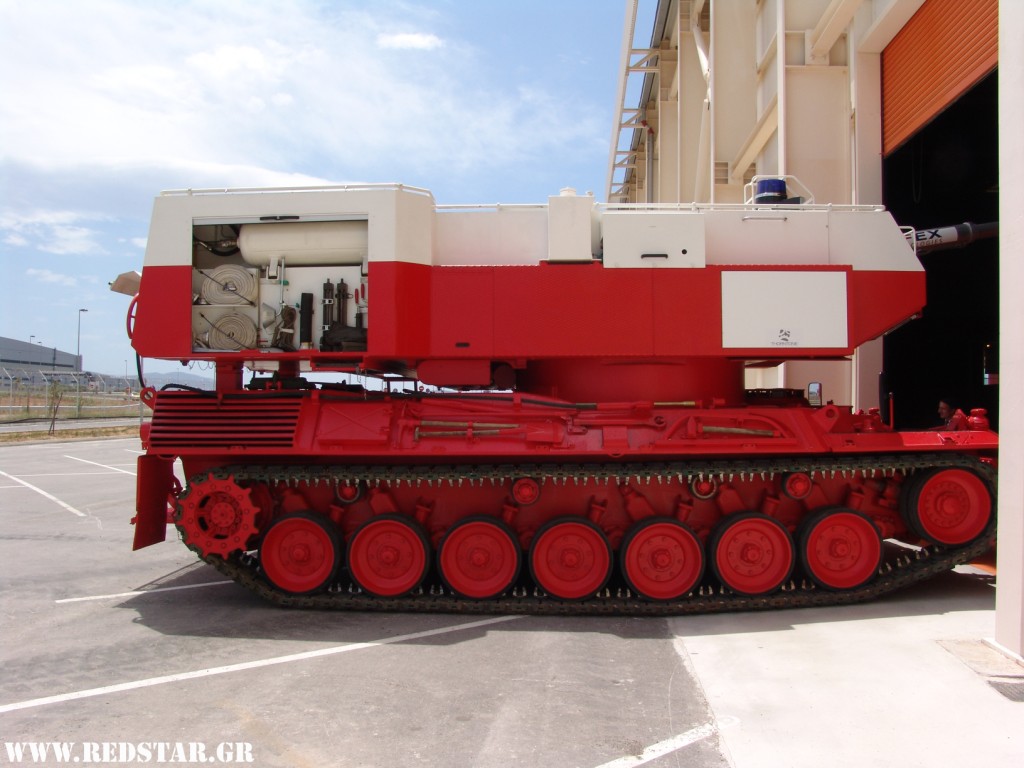

Photos Fire Commander
