The system is designed to engage large and medium surface ships, transports
and landing transport ships.
The system comprises:
Progress antiship cruise missile 3M-54KE
For the offence constant and mobile objectives it uses missiles of type 3M -14KE
Vehicle of administration and control
Transloader
Self-propelled launcher
Ground equipment for cruise missile preparation
Number of transported missiles amounts to 4.
 |

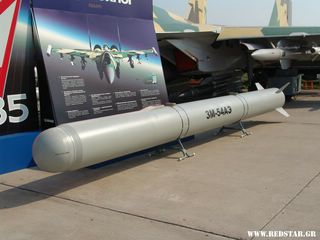

| Missile type 3M-54AE |
| Type: Anti-ship missile. Dimensions: Length 7,90 m, diameter 0,533 m. Weight: Maximum missile weight 1.950 kg, warhead weight 200 kg. Performance: Maximum speed 2.500 km/h, cruising speed 648 - 864 km/h, cruising altitude 20 initial stage and terminal 5-10 m, service ceiling 500 until 11.000 m, range up to 300 km, warhead type High-explosive. |
 |

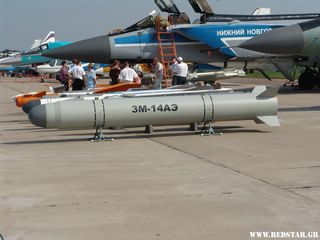

| Missile type 3M-14ΑΕ |
| Type: Anti-ship missile. Dimensions: Length 6,20 m, diameter 0,533 m. Weight: Maximum missile weight 1.400 kg, warhead weight 450 kg. Performance: cruising speed 648 - 864 km/h, cruising altitude 20 initial stage and terminal 5-150 m, service ceiling 500 until 11.000 m, range up to 300 χλμ., τύπος warhead type High-explosive. |

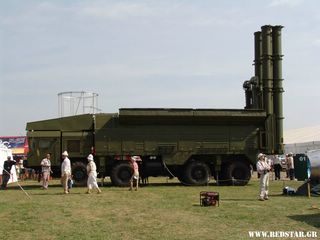

Photos CLUB-M Coastal defense missile system
