331nd All Weather Squadron “Theseus”
Location: 114th CW – Tanagra Air Base
Year of establishment: 1998 (332 All Weather Squadron: 1989)
Subordination: 114th Combat Wing
Aircraft serving: Mirage 2000-5
Mission: All weather interceptor
Mirage 2000-5 is a multipurpose fighter-bomber developed by the French company Dassault.
On May 3, 2007, the Greek Air Force receives the first upgraded Mirage 2000-5 Mk2 aircraft. And also two more two-seater planes on May 30 of the same month, with numbers 508 and 509.
All modified Mk2 aircraft are part of the 331st Squadron as well as the single-seat modified aircraft from the Greek Aircraft Repair Plant (HAE).
Equipment: RDY-2 Multifunction pulse-doppler radar with a slotted antenna array.
The basic operational functions provided are:
-air-to-air search (all altitude, all sectors, critical target selection and attack of several targets) and interception
-low-level strike (mapping, terrain-avoidance, blind let-down)
-air-to-ground attack
-sea surface search and attack

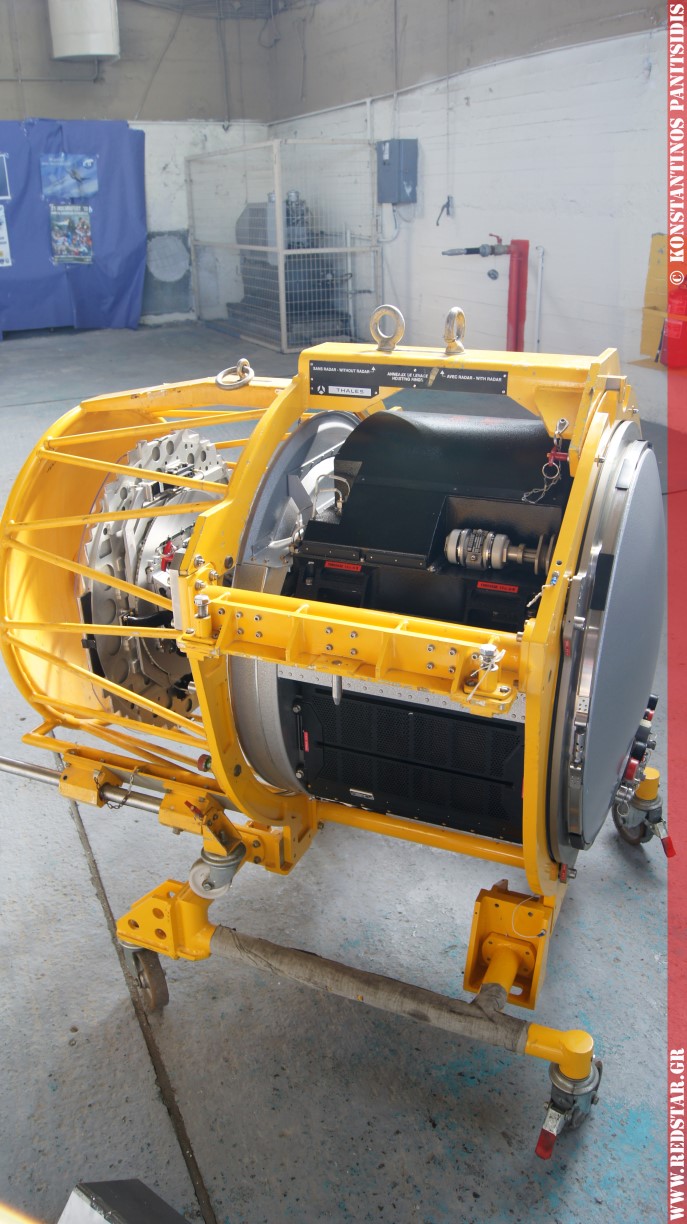

.jpg "RDY-2 Multifunction pulse-doppler radar with a slotted antenna array © Konstantinos Panitsidis") |
| Performance: Type: X-band (9 to 12,5GHz) multifunction fire-control radar. Detection range 130 km, number of detected and tracked targets 24 and track 8 of 24 detected, and engage the 4 tracked, antenna diameter 0,65 m. |
Patches
 |
Technical specifications
|
DESIGNER
|
Avions Marcel Dassault |
|---|---|
|
COUNTRY
|
France |
|
TYPE
|
Multipurpose fighter |
|
CREW
|
2 |
|
POWER-PLANT
|
One Snecma M53-P20 turbofan engines |
| Thrust, kgf | |
|
- with afterburning
|
1x9.999,3
|
|
- without afterburner
|
1x6.628,15
|
|
DIMENSIONS
|
|
|
Length, m
|
14,36
|
|
Height, m
|
5,15
|
|
Wing span, m
|
9,13
|
|
Wing area m2
|
41,00
|
| WEIGHT | |
| Maximum take-off, kg | 17.010 |
| Normal take-off, kg | 9.525 |
| Empty aircraft, kg | 7.257 |
| Internal fuel, kg | - |
| Warload, kg | 6.300 |
|
PERFORMANCE
|
|
|
Maximum speed, km/h
|
2.340 |
|
Maximum speed in low height, km/h
|
1.210 |
|
Maximum overload, g
|
9
|
|
Rate of climb, m/min
|
18.300
|
| Service ceiling, m | 16.764 |
|
Ferry range, km
|
3.520
|
|
Range, km
|
1.770
|
| Combat range, km | - |
| ARMAMENT | 2x30 mm cannons DEFA 554 with 2x125 rounds. Number external hardpoints: 9. Possibility of transport: Air-to-air missile Matra Super 530 or R.550 Magic 2, Sky Flash. Aair-to-surface missile AS.30, AS.30L or AS-37 Martel or Black Shahine. BombsBLG1000 Arcole or BLG250 bombs in 400 kg or BLG66 Belouga or BAP-100 and BAP-120, grenade launchers Type 531. Pod Thompson-CSF/Martin Marietta ATLIS II, or pods Dattack CC421 with 30 mm cannons DEFA and Launcher 68 mm. Anti-ship missile AM.39 Exocet |
Photos Mirage 2000-5 Mk-2
Mirage 2000-5, AB: Tanagra HAF
RDY-2 Multifunction pulse-doppler radar
