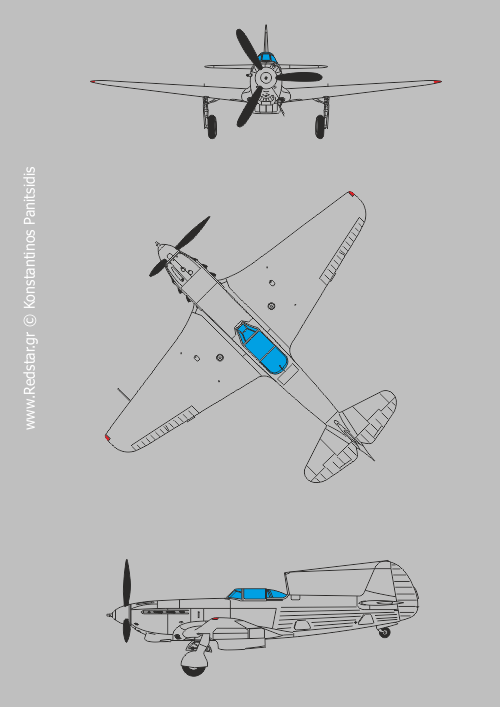

Three-view drawing
Technical specifications
| DESIGNER | OKB Yakovlev |
| COUNTRY | Russia |
| TYPE |
Attack Fighter
|
| CREW | 1 |
| POWER-PLANT | One piston engine VK-105PF |
| Power, h.p. | 1x1.180 |
| DIMENSIONS | |
| Length, m | 8,66 |
| Height, m | 3,00 |
| Wing span, m | 9,74 |
| Wing area, m2 | 17,15 |
| WEIGHT | |
| Maximum take-off, kg | - |
| Normal take-off, kg | 3.025 |
| Empty aircraft, kg | 2.298 |
| Internal fuel, kg | - |
| Warload, kg | - |
| PERFORMANCE | |
| Maximum speed, km/h | 597 |
| Max speed in low height, km/h | 533 |
| Cruising speed, km/h | - |
| Range, km | 735 |
| Combat range, km | - |
| Service ceiling, m | 10.000 |
| Rate of climb, m/min | 910 |
| Maximum overload, g | - |
| ARMAMENT | One 37 mm cannon NS-37 (30 rounds) and one 12,7 mm machine-gun UBS ( 200 rounds). |
