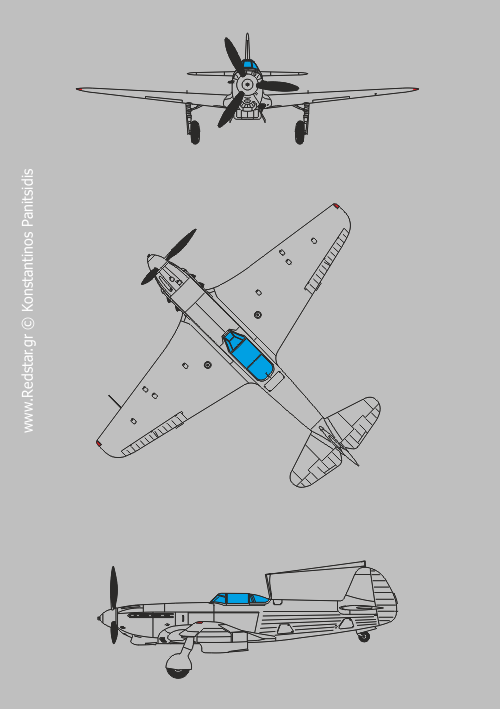

Three-view drawing
Technical specifications
| DESIGNER | OKB Yakovlev |
| COUNTRY | Russia |
| TYPE |
Long-range fighter
|
| CREW | 1 |
| POWER-PLANT | One piston engine M-105PF |
| Power, h.p. | 1x1.180 |
| DIMENSIONS | |
| Length, m | 8,60 |
| Height, m | 3,00 |
| Wing span, m | 9,74 |
| Wing area, m2 | 17,15 |
| WEIGHT | |
| Maximum take-off, kg | - |
| Normal take-off, kg | 3.387 |
| Empty aircraft, kg | 2.346 |
| Internal fuel, kg | - |
| Warload, kg | - |
| PERFORMANCE | |
| Maximum speed, km/h | 591 |
| Max speed in low height, km/h | 522 |
| Cruising speed, km/h | - |
| Range, km | 1.320 |
| Combat range, km | - |
| Service ceiling, m | 9.400 |
| Rate of climb, m/min | 781 |
| Maximum overload, g | - |
| ARMAMENT | One 20 mm cannon ShVAK with 120 rounds, one 12,7 mm machine-gun UBS with 200 rounds. |
