Aerial target “Dan'”

In numbers  Through the lens  Video

The “Dan'” target UAV was developed in the early 90s (by Sokol Design Bureau) for training pilots, operators of airborne intercept missile systems, testing anti-aircraft systems and on-board weapons systems of fighter aircraft.

Equipment: At the customer’s request, it is possible to install a side-view radar and a multi-channel radiometer.

The air target “Dan'” imitates subsonic tactical aircraft and Tomahawk cruise missiles.
The “Dan'” UAV is a free-flying, single-engine, monoplane with a mid- wing and a power plant located in the tail section of the aircraft.
The “Dan'” UAV is launched from a ground launcher or from a transport launch vehicle using a powder booster (dropped after takeoff), and lands by parachute on a special inflatable structure.
The “Dan'” UAV has a combined control system and allows for a flight according to a given program or the use of remote control via a radio channel.
The UAV is designed for tenfold use.

The overall arrangement of the product (aerial target "Dan'").

1. Radio sighting 2. Radio control (quidance) 3. Telemetering (telemetry) 4. Autopilot navigator (flight controller) 5. Electrical generating system 6. Engine air intake 7. Engine 8. Vertical stabilizer 9. System device for landing 10/14 Landing airbags 11. Wing tip 12. Wing 13.  Launch system 14. Powder booster (not shown conditionally) 15. Horizontal stabilizer 16. Power-plant nozzle.

The complex includes:
- UAV “Dan'” (air target)
- Transport and loading vehicle
- Transport and launch vehicle
- Ground control facilities
- Ground support facilities

Transport and launch vehicle.

Transport and launch vehicle.

Three-view drawing

Technical specifications

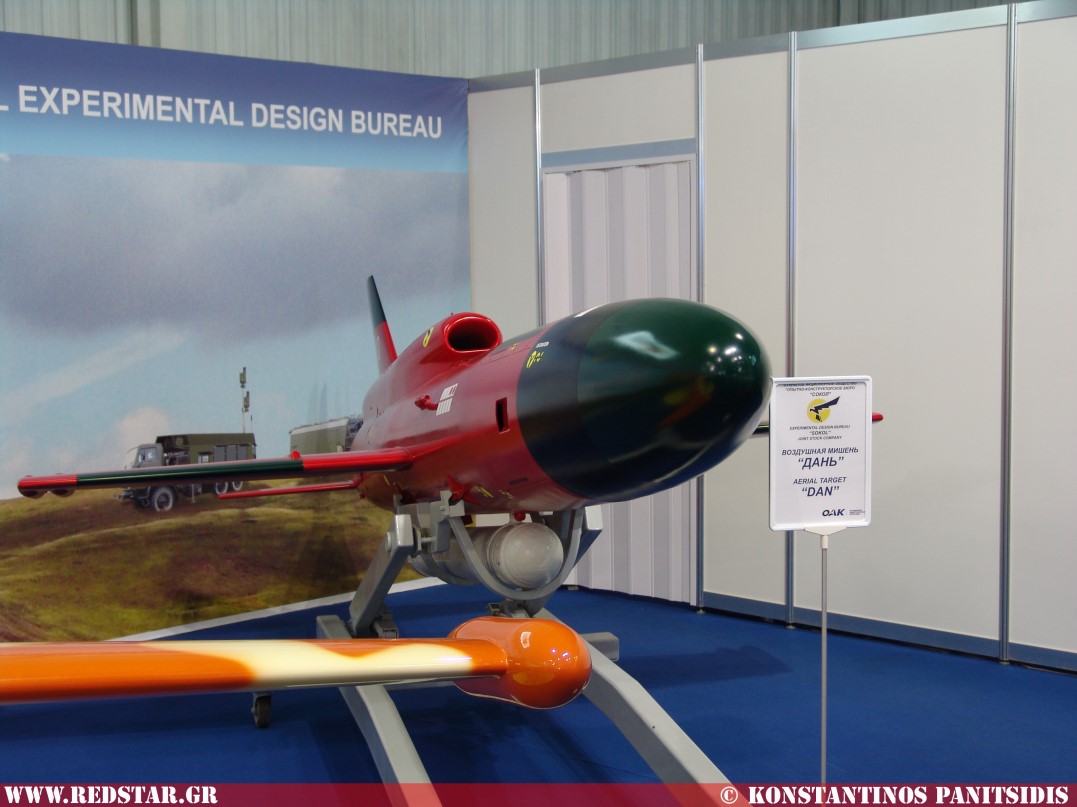

Photos Aerial target “Dan'”
