Export modification "-AE"
Zhuk-AE developed on the basis of Zhuk-A/MA, unified airborne multifunction radar with the active phased-array antenna is intended for the aircraft of frontline aviation.
Technical specifications
| DESIGNER | Fazatron-NIIR |
| COUNTRY | Russia |
| OPERATIONAL AIRFRAME | MiG-35 |
| TYPE |
AESA
|
| Operating frequency band | Χ |
| Number of carrier frequencies | - |
| Antenna | |
| - type | Active electronically scanned array, radar |
| - diameter, mm | 688 |
| Target detection range for targets of σ=5m2 in air-to-air modes, km: | |
| look-up: | |
| - head-on aspect | +130 (200) |
| - tail-on aspect | 60 |
| look-down: | |
| - head-on aspect | - |
| - tail-on aspect | - |
| Range of ground target detection, km | 61-72 |
| Number of detected and tracked targets | 30 |
| Number of simultaneous attacks against targets | 8 |
| Parameters: | |
| Weight, kg | 280 |

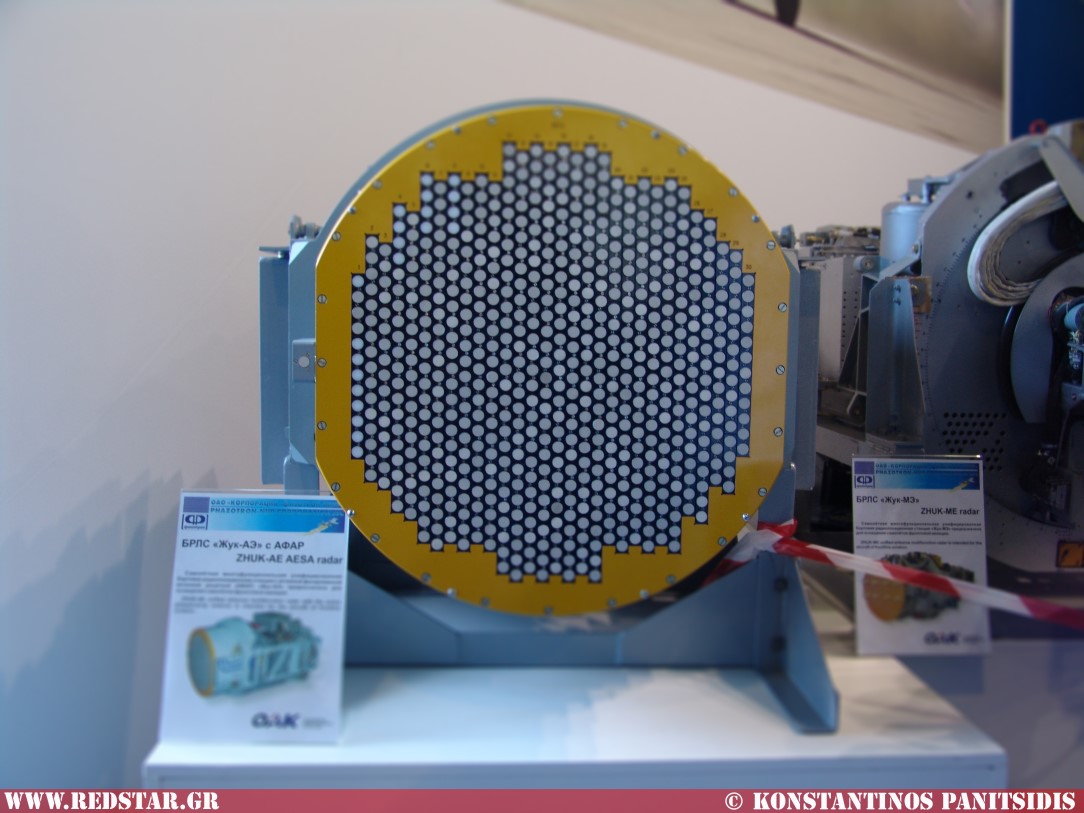

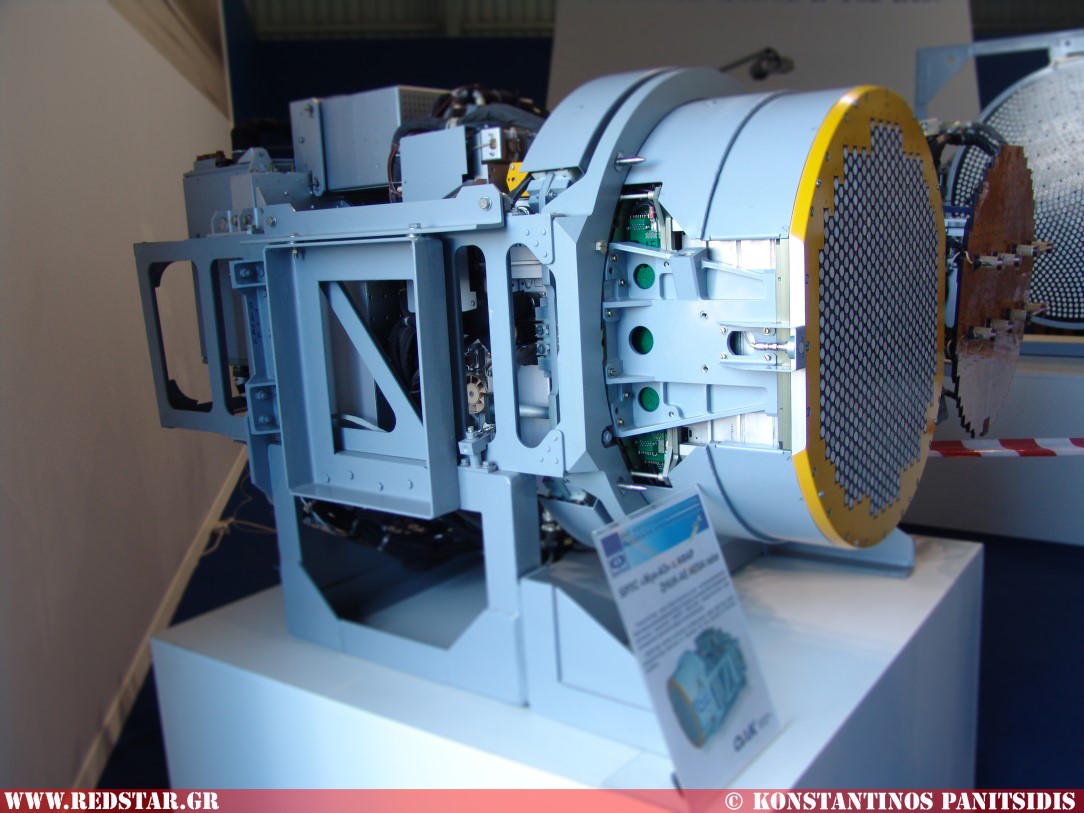

Photos Zhuk-AE Active electronically scanned array, radar
