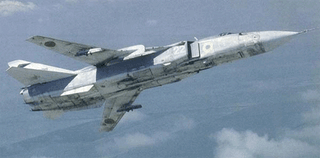

Su-24MP ECM aircraft (Electronic warfare-jamming aircraft.

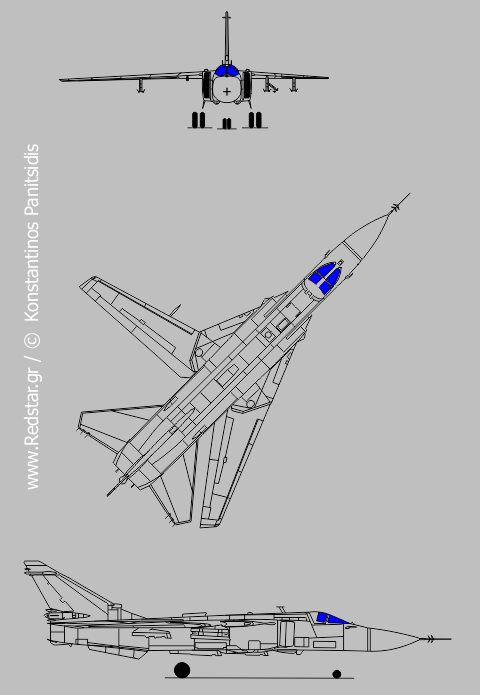

Three-view drawing
Technical specifications
| DESIGNER | OKB Sukhoi |
| COUNTRY |
Russia
|
| TYPE |
Electronic warfare-jamming aircraft
|
| CREW | 2 |
| POWER-PLANT | Two turbojet engines NPO Saturn Al-21-F-3A |
| Thrust, kgf | 2x11.250 |
| DIMENSIONS | |
| Length, m | 24,59 |
| Height, m | 6,19 |
| Wing span, m | - |
| - maximum (69ο) | 17,64 |
| - minimum (16ο) | 10,37 |
| Wing area, m2 | - |
| - minimum | - |
| - maximum | - |
| WEIGHT | |
| Maximum take-off, kg | 39.700 |
| Normal take-off, kg | 32.400 |
| Empty aircraft, kg | 22.900 |
| Internal fuel, kg | - |
| Weight of transported fuel with external tanks, l. | - |
| Warload, kg | - |
| PERFORMANCE | |
| Maximum speed, km/h | 1.430 |
| Maximum speed, sea level km/h | - |
| Maximum speed in low height, km/h | 1.320 |
| Range, km | 2.500 |
| Combat range, km | 680 |
| Service ceiling, m | 11.000 |
| Maximum overload, g | - |
| ARMAMENT | Possibility of transportation up to 2 R-60 or R-60M air-to-air missiles. |
