Su-80 (S-80) Multipurpose transport aircraft.
A multipurpose twin-boom transport/passenger turboprop featuring a lifting capacity of 3.300 kg and powered by two General Electric CT7-9B 1.750-hp 6-blade tractor propeller engines. The KnAAPO is currently productionising the aircraft.
The versions offered are the S-80PG convertible transport/passenger aircraft to carry 23 passengers or a 3.300-kg cargo, S-80P passenger aircraft, S-80TD military transport to carry and airdrop 21 paratroops or a 3.300-kg cargo, S-80M 10-casualty medevac, S-80PT transport patrol to patrol the littoral economic zones, carry 20 passengers/paratroops or 3.300-kg cargo-it mounts a surveillance/sighting system comprising a radar and an IR thermal imager, and externally-mounted rockets/gun weapons suite.
The S-80 prototype's maiden flight is slated for 2001.
| Aircraft modifications |
| S-80PG: mixed cargo aircraft |
| S-80TD: air troop carrier |
| S-80M: air ambulance |
| S-80R: fishery patrol |
| S-80GR: geological-reconnaissance aircraft |
| S-80P: passenger, extended version for 32 passengers. |
| S-80PT: patrol transport aircraft. |
Technical specifications
| DESIGNER | OKB Sukhoi |
| COUNTRY | Russia |
| TYPE |
Multipurpose transport aircraft
|
| CREW | 2 |
| POWER-PLANT | Two turboprop engines General Electric CT7-9B (or two turboprop engines Salyt TVD-1500) |
| Power, h.p. | 2x1.750 (2x1.500) |
| DIMENSIONS | |
| Length, m | 18,26 |
| Height, m | 5,74 |
| Wing span, m | 23,18 |
| Wing area, m2 | 44,36 |
| WEIGHT | |
| Maximum take-off, kg | 14.200 |
| Normal take-off, kg | 13.500 |
| Empty aircraft, kg | 9.450 |
| Internal fuel, kg | 2.870 |
| Payload, kg | 3.300 |
| - passengers | 30 |
| - paratroopers | 21 |
| - stretcher with attendants | 10 |
| PERFORMANCE | |
|
Maximum speed, km/h
|
470
|
|
Cruising speed, km/h
|
430
|
|
Ferry range, km
|
3.250
|
|
Range, km
|
1.300
|
|
Service ceiling, m
|
7.600
|
| ARMAMENT | Doesn't have (defensive). |

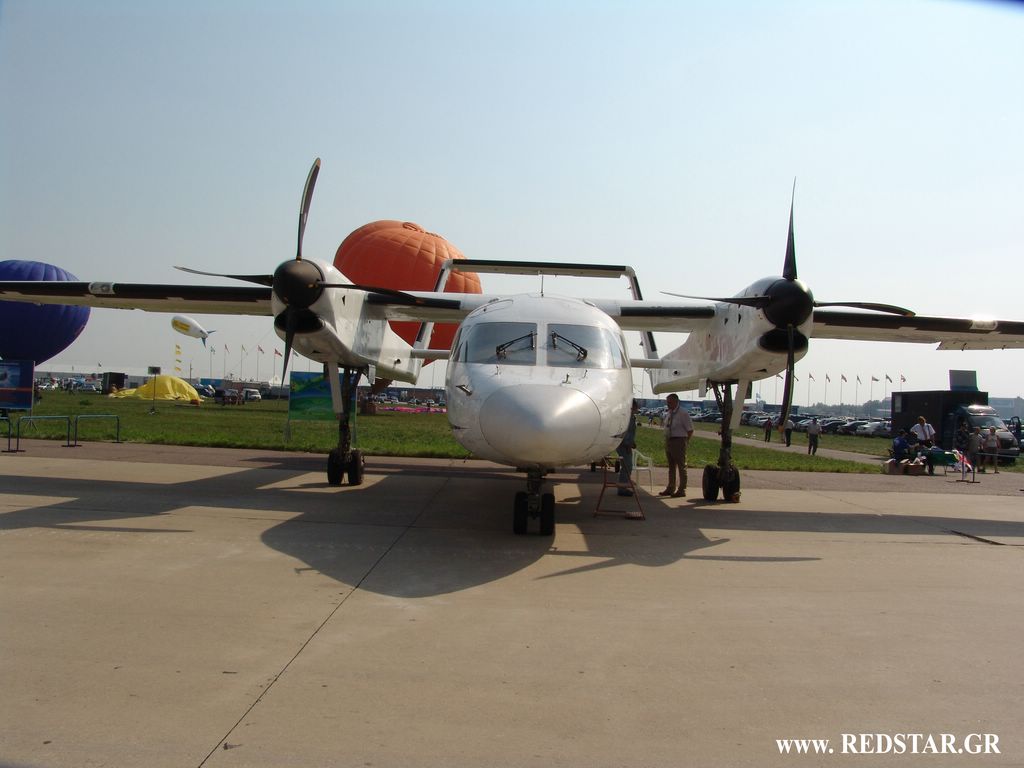

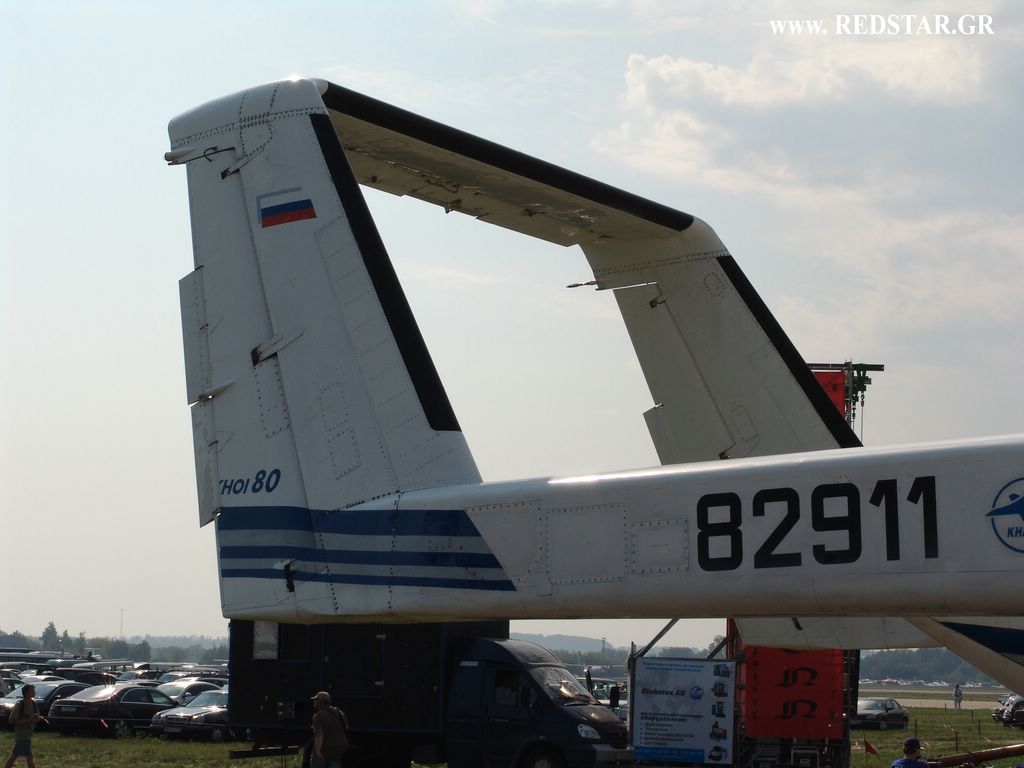

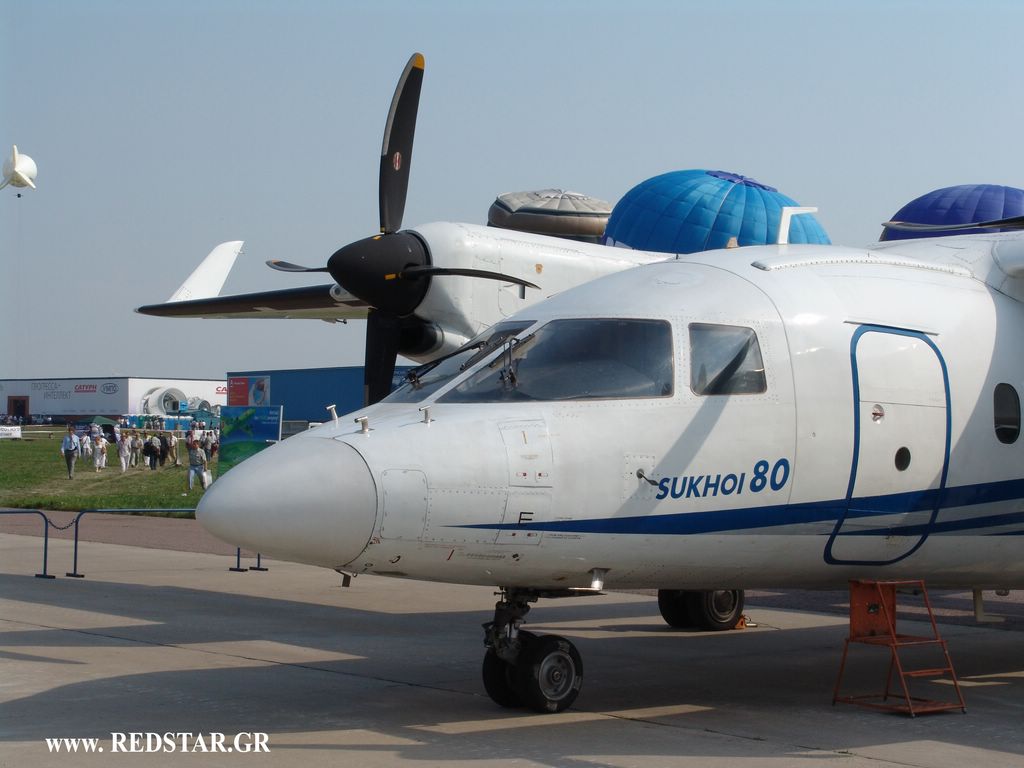

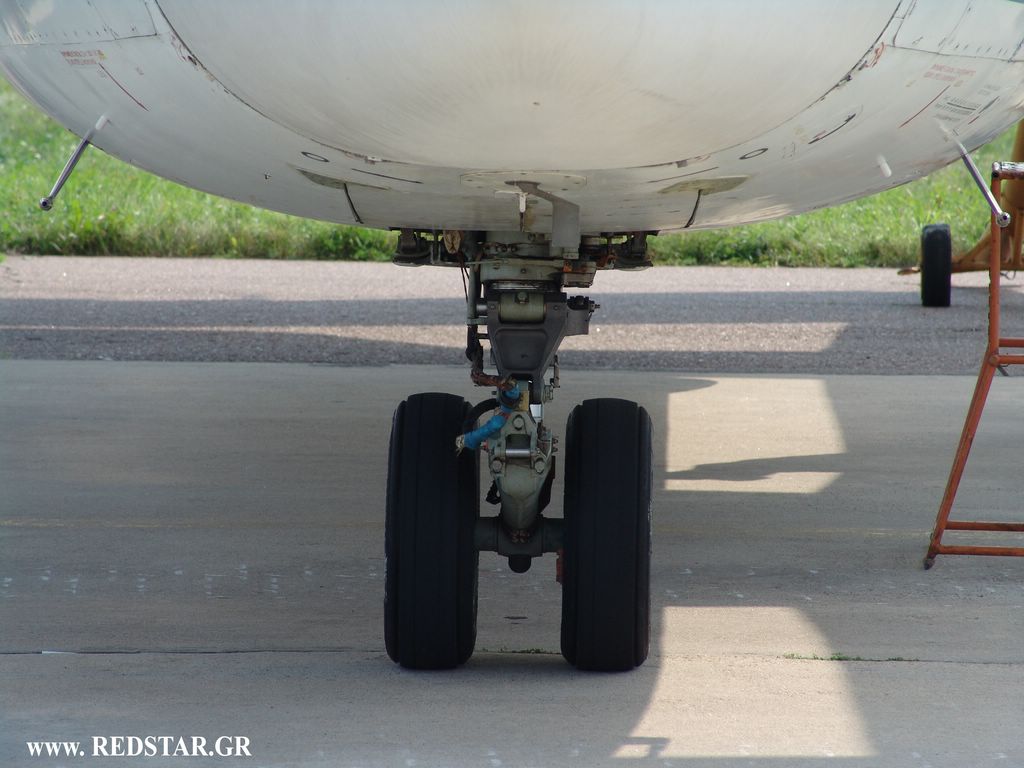

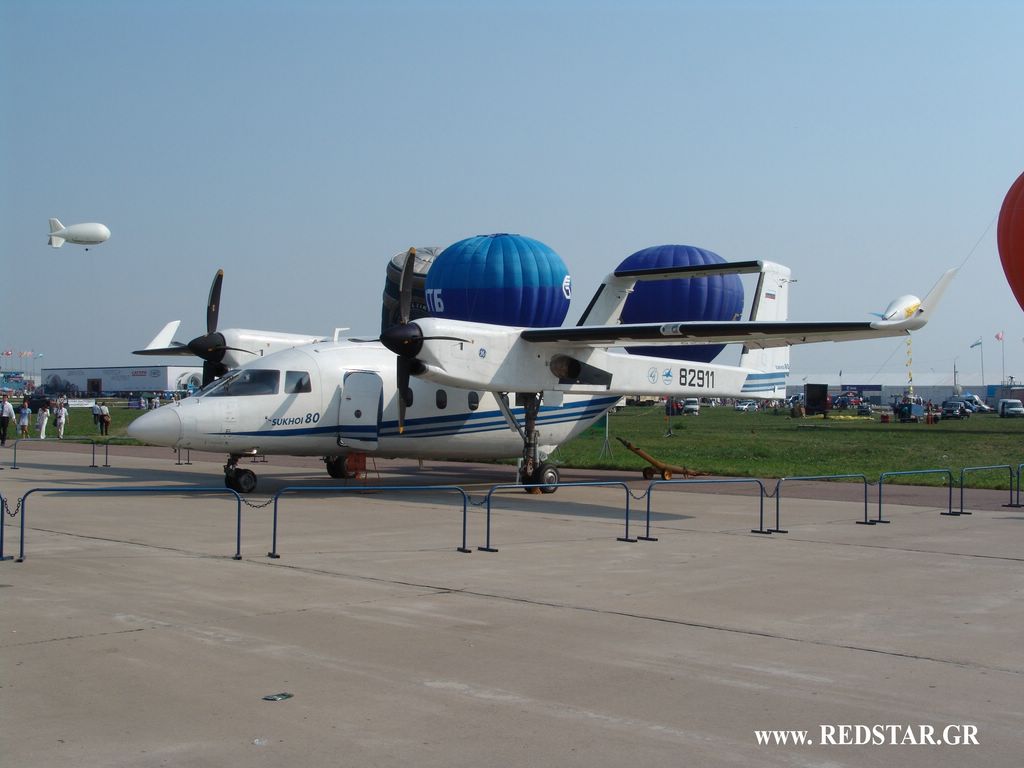

Photos Su-80 (S-80) Multipurpose transport aircraft
