Factory designation: E-7SPS, Type 94
The letters “PFS/M” indicate:
“P” – Interceptor
“F” – Front-line
“S” – Blown flaps
“M” – Modified
The aircraft was mass-produced from 1963 to 1966 in Gorky for the Soviet Air Force. Export versions were produced from 1966 to 1968 in Moscow.
Structurally, the MiG-21PFS was a development of the MiG-21PF. To improve takeoff and landing performance, the aircraft was equipped with blown flaps and SPRD-99 auxiliary booster rockets, each providing a maximum thrust of 2.500 kgf. These boosters were mounted at a 48-degree angle relative to the aircraft plane of symmetry, generating additional thrust during takeoff.
The MiG-21PFS was designed to carry a 23 mm GSh-23 cannon pod, air-to-air guided missiles, air-to-surface weapons, and unguided rocket launchers.
Throughout its production life, the MiG-21PFS underwent continuous improvements. Combat experience confirmed its effectiveness as a fighter-interceptor. Its modernized variant, the “PFM,” was successfully employed within the North Vietnamese air defense system, where it engaged in aerial combat with American F-4 Phantom fighters.
Note: The MiG-21PFM is essentially the same aircraft under a revised designation, adopted after 1966–1967 when serial production of the E-7SPS variant ended.

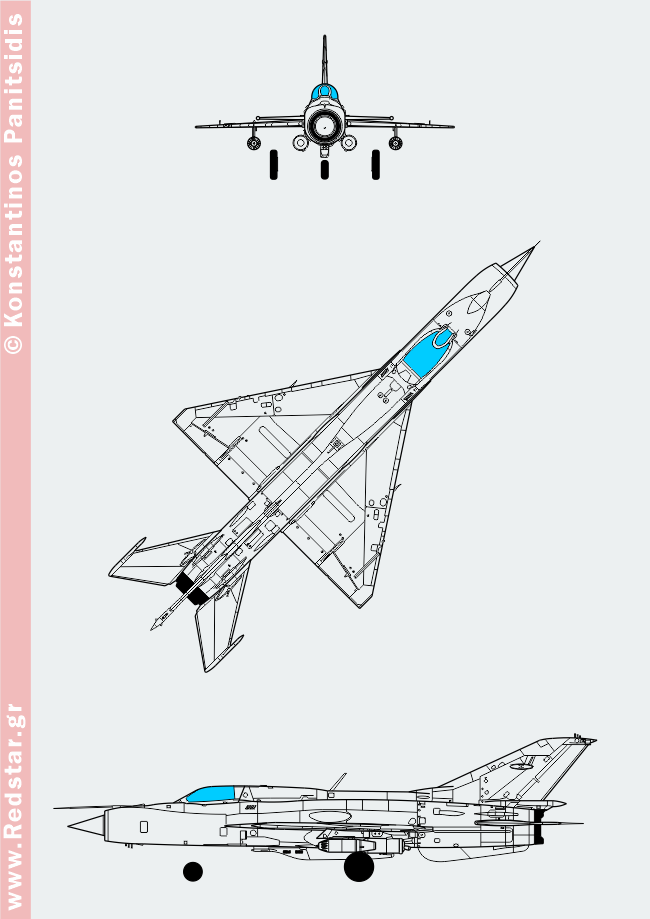

Three-view drawing
Technical specifications
| DESIGNER | OKB MiG |
| COUNTRY | Russia |
| TYPE |
Fighter-interceptor
|
| CREW | 1 |
| POWER-PLANT | One turbojet R-11F2S-300 |
| Thrust, kgf | 1х6.175 |
| DIMENSIONS | |
| Length, m | 14,10 |
| Height, m | 4,71 |
| Wing span, m | 7,15 |
| Wing area, m2 | 23,00 |
| WEIGHT | |
| Maximum take-off, kg | 9.120 |
| Normal take-off, kg | 7.820 |
| Empty aircraft, kg | - |
| Internal fuel, kg | 2.200 |
| Warload, kg | 1.300 |
| PERFORMANCE | |
| Maximum speed in high altitude, km/h | 2.230 |
| Maximum permitted speed at high altitude, km/h | - |
| Maximum speed in low height, km/h | 1.300 |
| Range with drop tank, km | 1.670 |
| Range without drop tank, km | 1.300 |
| Rate of climb, m/min | - |
| Service ceiling, m | 19.000 |
| Maximum overload, g | 8 |
| ARMAMENT | One 23mm gun GSh-23L. Number external hardpoints: 4. Up to four guided missiles of the K-13 or R-3S or RS-2US type or the Kh-66 ASM, a container with a 23-mm GSh-23 cannon or an S-24 Unguided aircraft rocket. |

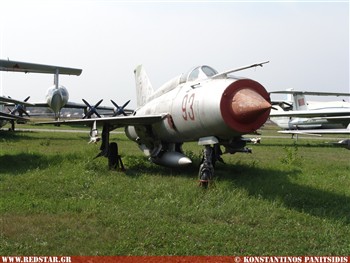

Photos MiG-21PFS Fighter-Interceptor
