A promising medium military transport aircraft for short takeoff and landing, designed to transport up to 18-20 tons of cargo, was created on the basis of the An-158.
The power plant of the aircraft consists of two turbofan three-shaft double-circuit D-436-148FM with a thrust of 7.010 kgf (tABM = + 30oC) and 7.690 kgf in emergency power raiting.
The aircraft has an improved Western-made avionics.
An-178-100R should replace the An-12, An-26, An-32 military transport aircraft and not only in the military transport aviation of the Armed Forces of Ukraine (Armed Forces of Ukraine).
On December 28, 2021, the An-178-100R, which is intended for flight tests, was presented to the public for the first time.

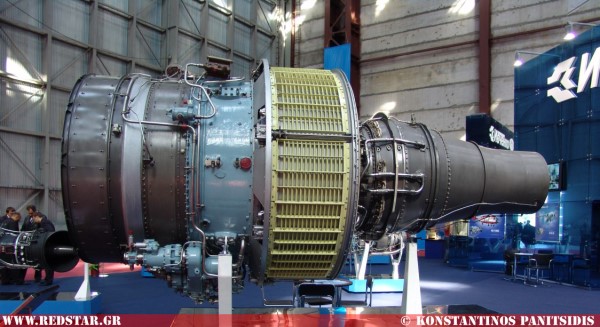

| The D-436-148FM engine is an upgraded version of the D-436-148 engine with better characteristics. |
.jpg "The D-436-148FM engine is an upgraded version of the D-436-148 engine with better characteristics © Konstantinos Panitsidis") |
| Maximum emergency power rating (H=0, MFL=0, ISA, tAMB=+30oC) | D-436-148FM |
| Thrust, kgf | 7.690 |
| Take-off rating (PABM=700mm Hg, Mfl=0, ISA, tABM=30oC) | |
| Thrust, kgf | 7.010 |
| Specific fuel consumption, kg/kgf*h | 0,35 |
| Maximum cruise rating (H=11.000 m, MFL=0,75, ISA +10oC) | |
| Thrust, kgf | 1.560 |
| Specific fuel consumption, kg/kgf*h | 0,6 |
| Weight engine, kg | 1.400 |
Three-view drawing
Technical specifications
| DESIGNER | Antonov Company |
| COUNTRY | Ukraine |
| TYPE |
Military transport aircraft
|
| CREW | 2+2 |
| POWER-PLANT | Two D-436-148FM turbofan engines |
| Thrust, kgf | 2x7.690 |
|
DIMENSIONS
|
|
|
Length, m
|
32,23 |
|
Height, m
|
9,65 |
|
Wing span, m
|
30,57 |
| Wing area m2 | 87,32 |
|
Horizontal stabilizer span, m
|
9,5
|
| WEIGHT | |
| Maximum take-off (with overload), kg | 52.400 |
|
Maximum take-off, kg
|
51.000 |
| Normal take-off, kg | - |
|
Maximum landing weight, kg
|
47.000
|
| Empty aircraft, kg | 18.350 (19.750) |
| Internal fuel, kg | 14.650 |
| Payload, kg | |
| - passengers, soldiers | until 100 |
| - paratroopers | until 86 |
| - wounded on stretchers | 40 |
| - seated woundeds | 38 |
| - freight in cabin | 18.000 |
| PERFORMANCE | |
| Maximum speed, km/h | 890 |
| Cruising speed, km/h | 825 |
| Service ceiling, m | 12.200 |
|
Service ceiling (with soldiers and cargo in the cabin), m
|
11.300
|
|
Ferry range, km
|
6.000
|
| Range, km | |
| - with payload 10.000 kg | 3.175 |
| - with payload 10.000 kg (with overload) | 3.680 |
| ARMAMENT | Doesn't have (defensive). |
