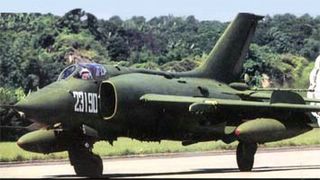

This is a more modernized version of the Q-5. it carries Phazatron's Komar pulse-doppler radar, improved ECMs of Russian technology, a new data processor, ALR-21 laser ranger, etc.
It first flight took place in 1996 and has been in production since 2000.
Technical specifications
| DESIGNER | Nanchang |
| COUNTRY | China |
| TYPE |
Attack aircraft
|
| CREW | 1 |
| POWER-PLANT | One Liming (LM) Wopen-6A III turbojet engine with afterburning |
| Thrust, kgf | |
|
- with afterburning
|
2x4.048 |
|
- without afterburner
|
2x2.997 |
|
DIMENSIONS
|
|
|
Length, m
|
16,40
|
|
Height, m
|
4,50 |
|
Wing span, m
|
9,70
|
| Wing area m2 |
27,95
|
| WEIGHT | |
| Maximum take-off, kg | 12.600 |
| Normal take-off, kg | 10.200 |
| Empty aircraft, kg | 6.500 |
| Internal fuel, kg | 2.825 |
| Weight of transported fuel with external tanks, l | 1.178 (2x760 or 400) |
| Warload, kg | 3.000 |
| PERFORMANCE | |
| Maximum speed, km/h | 1.190 |
| Cruising speed, km/h | - |
| Maximum speed in low height, km/h | - |
|
Combat range, km
|
400 |
| Range, km | 2.000 |
| Ferry range, km | - |
| Service ceiling, m | 15.850 |
| Rate of climb, m/min | - |
| Maximum overload, g | - |
| ARMAMENT | Two 23 mm cannons Type 23-2K with 200 rounds. Number external hardpoints: 10. Possibility of transport 4 Air-to-air missile PL-2/B, PL-7 and AIM-9 Sidewinder. Bombs: Type 250-2 or 250-3, Mk 82, Snakeye, Durandal, BL755, 4x250 kg bombs, 10x100 kg bombs. 4 x Launcher (8x57mm, 7x68 mm, Norinco 90-1, 7x90 mm και 4x130 mm) and reconnaissance and electronic warfare ponds. |
