The 23 mm ZU-23-2 Twin Anti-Aircraft Cannon is a powerful mean of combat against airborne targets within the distance of 2.500 m and height of 1.500 m.
Anti-aircraft installation ZU-23 caliber 23-mm, index GRAU 2A13, was operated in many countries of the world. It is manufactured under license from Bulgaria, Poland, Egypt and China.
In 2023, at the DEFEA exhibition, the Polish company AREX WB Group with Prexer presented an improved upgraded version of the ZU-23-2 based on the ZU-23 with the DJ-25 system (jammer).
The DJ-25 system is installed on the ZU-23 mainly to suppress and disable enemy communication and guidance systems and for self-defense of an anti-aircraft installation, as well as a weapon against drones (UAVs).

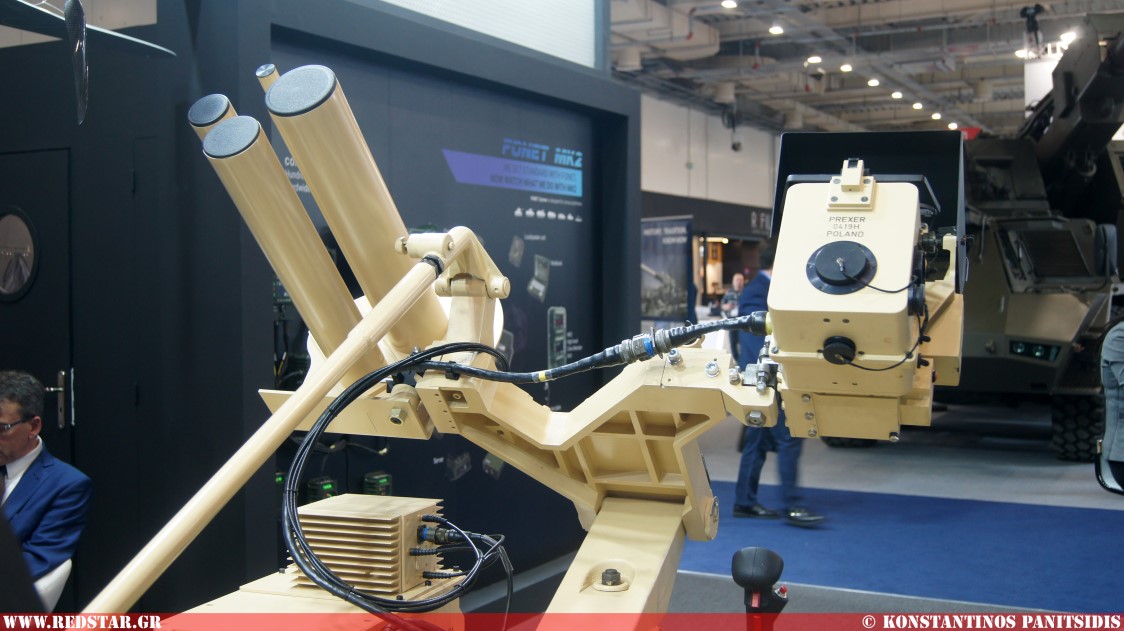

.jpg "Jammer DJ-25 © Konstantinos Panitsidis") |
| Jammer DJ-25 |

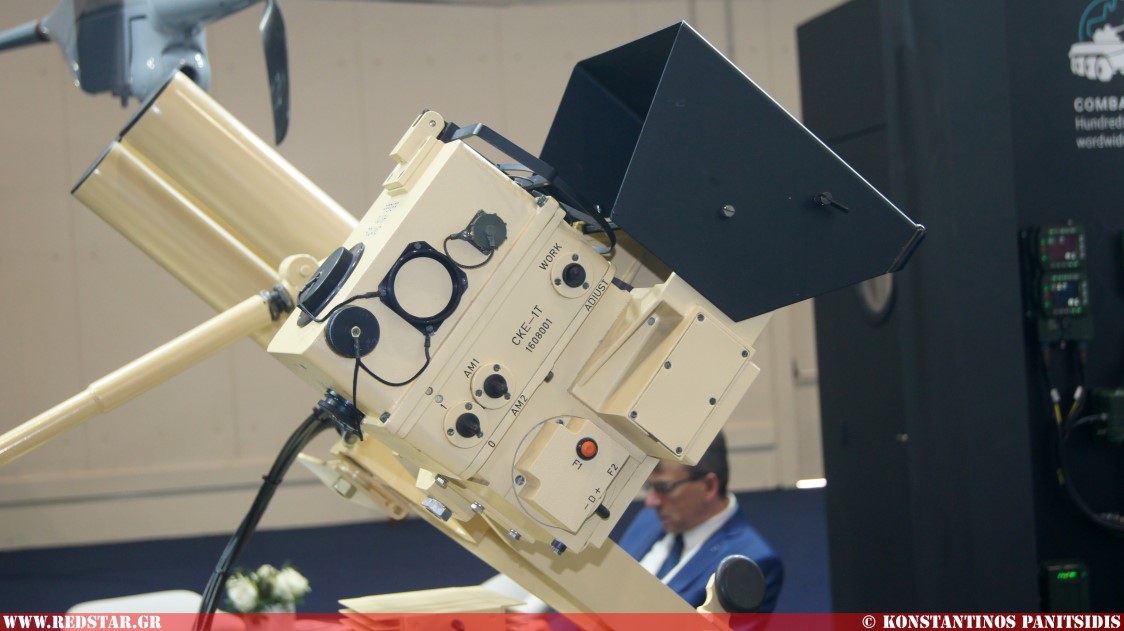

Jammer DJ-25 (disturbances in communication and navigation systems of unmanned aerial vehicles (UAVs)).
| Technical characteristics of the jammer DJ-25 | |
| Range (depending on the type of UAV), m | until 2.500 |
| Output power, W | 25 until 50 |
| Рoperating frequency, GHz | 2,4 or 5,8 |
| Geolocation system (GPS, Galileo, GLONASS and GSM) in the range, MHz. | 850 - 900 |
| Operating temperature range oC | -20 until +60 |
| Jamming beam angle, deg. (installation) | until 10 |
| System weight, kg | 7 |
| System power consumption, W | until 350 |
| Power supply, V (DC) | 24 |

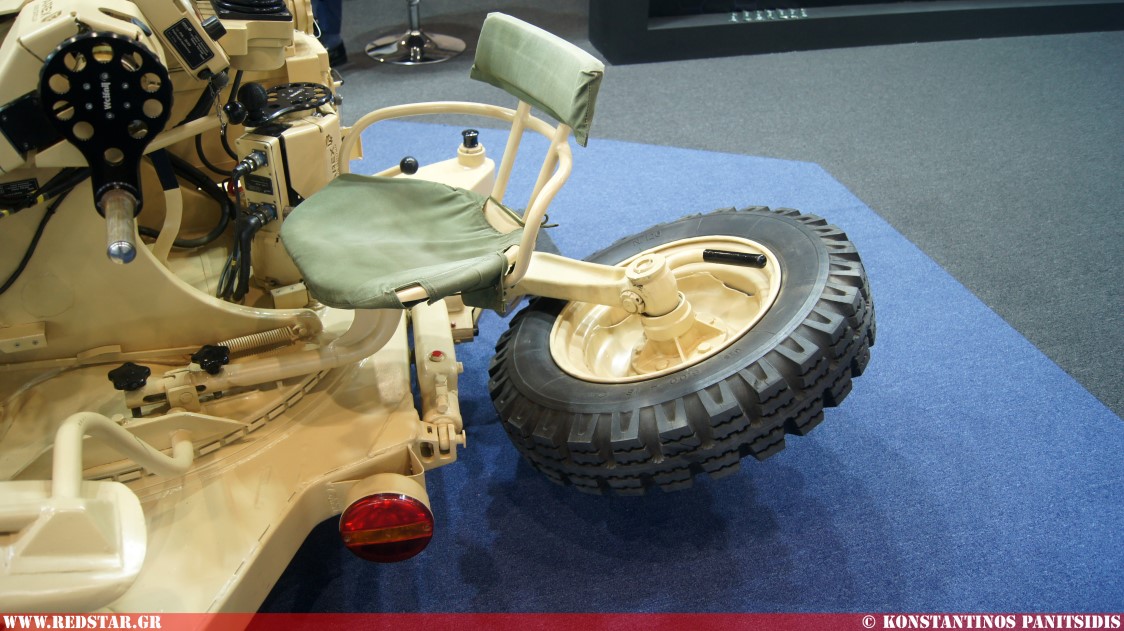

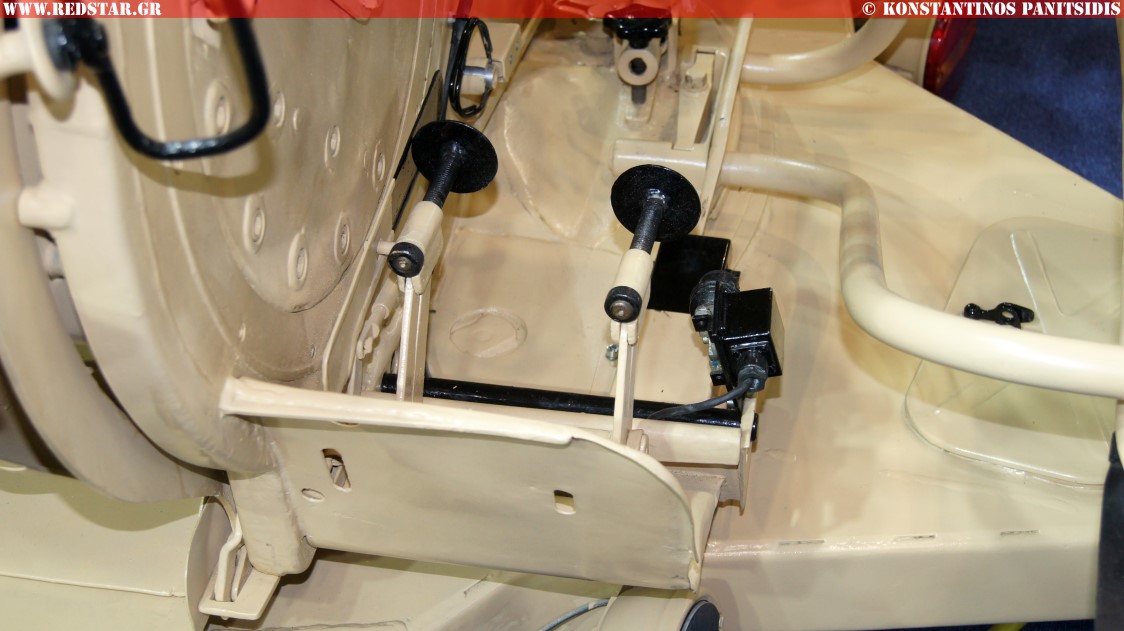

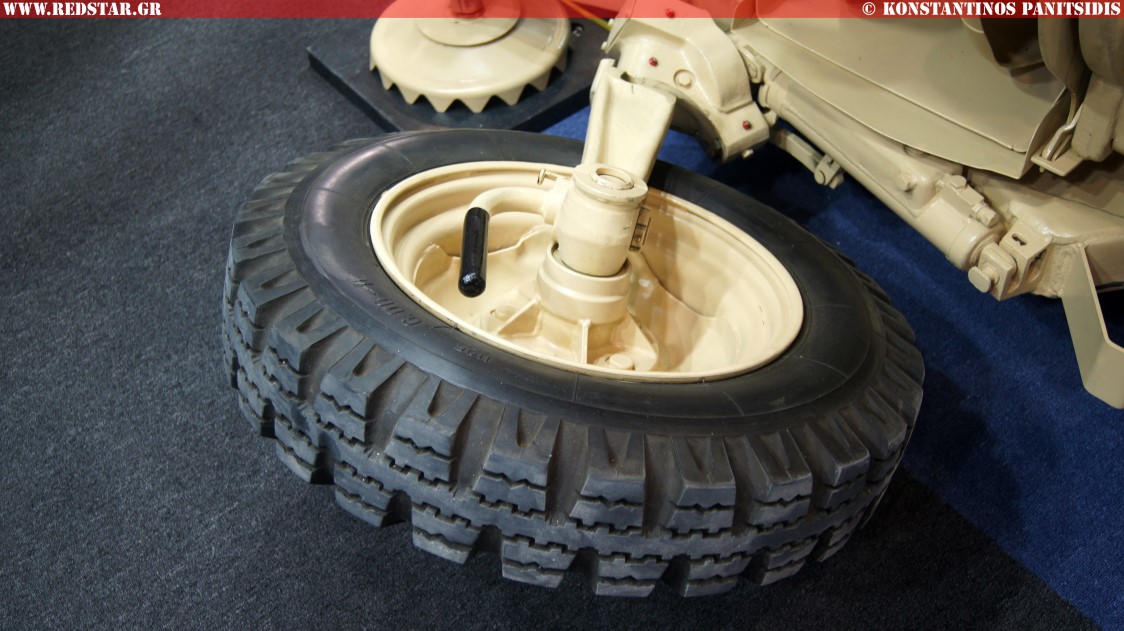

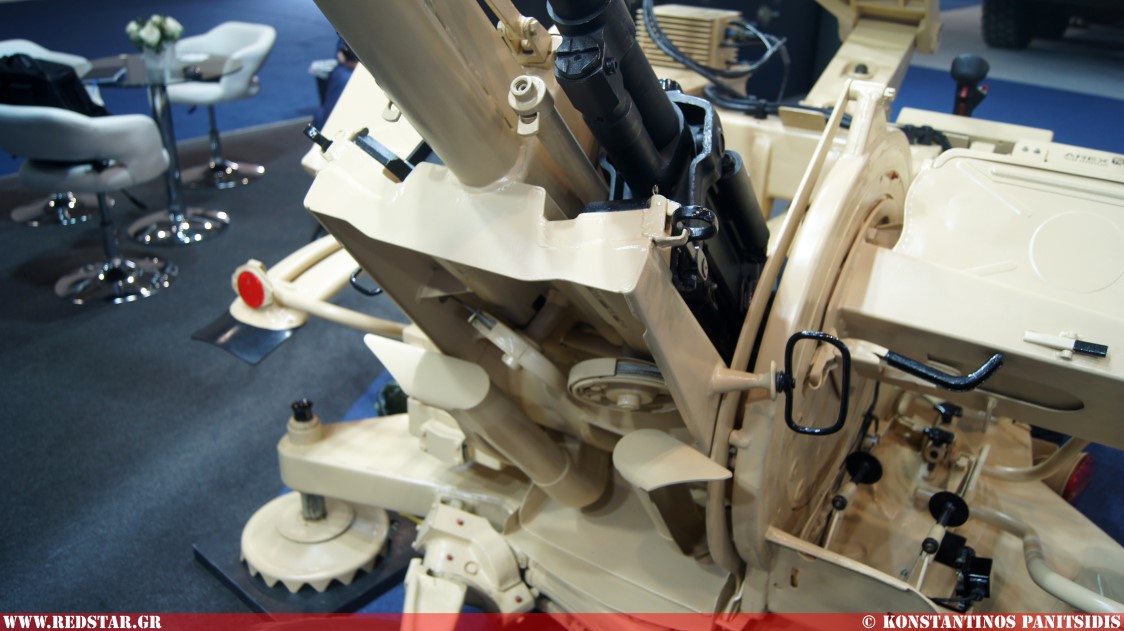

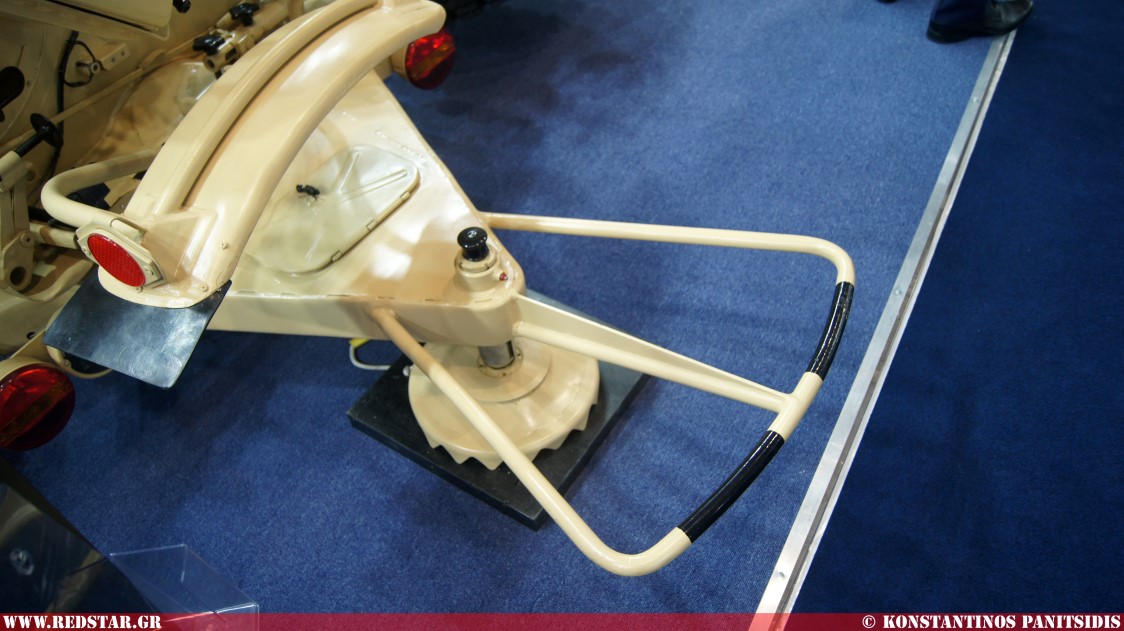

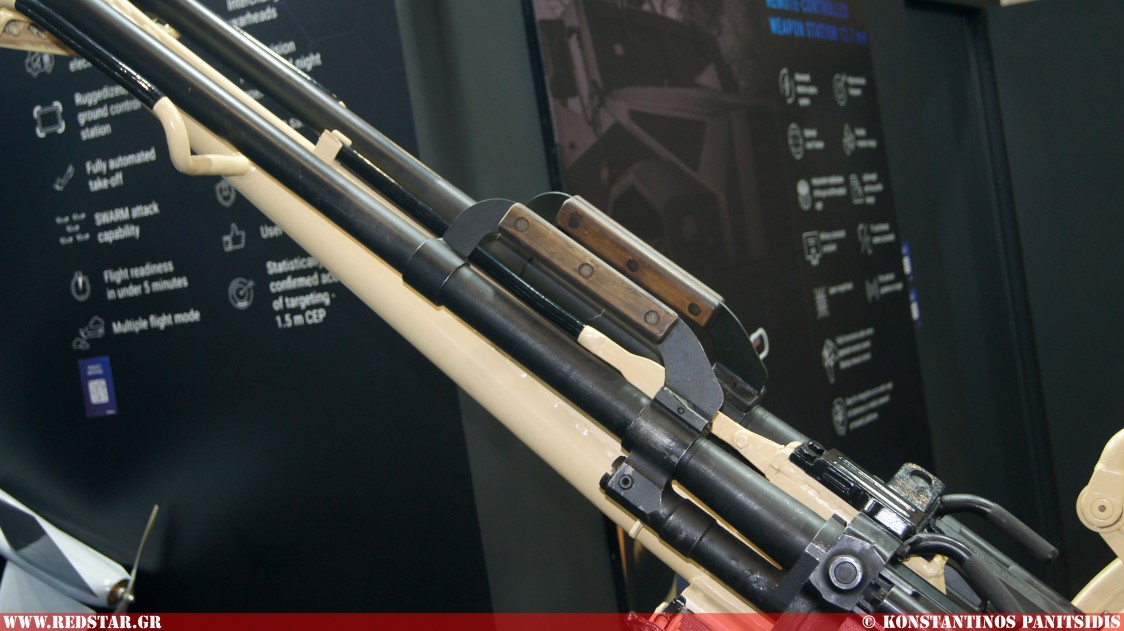

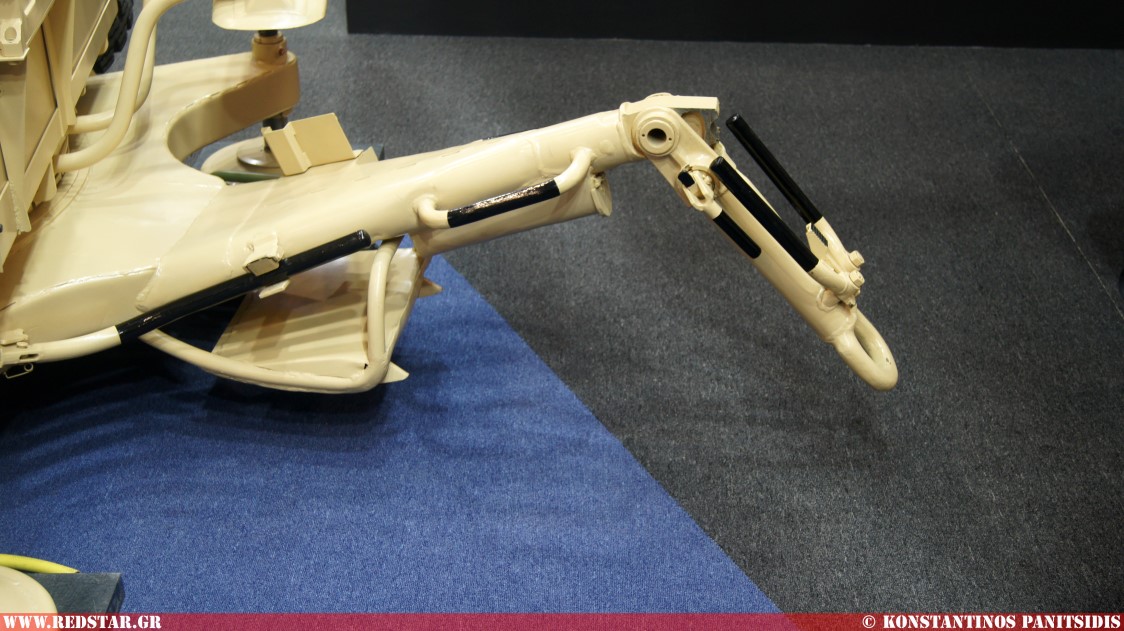

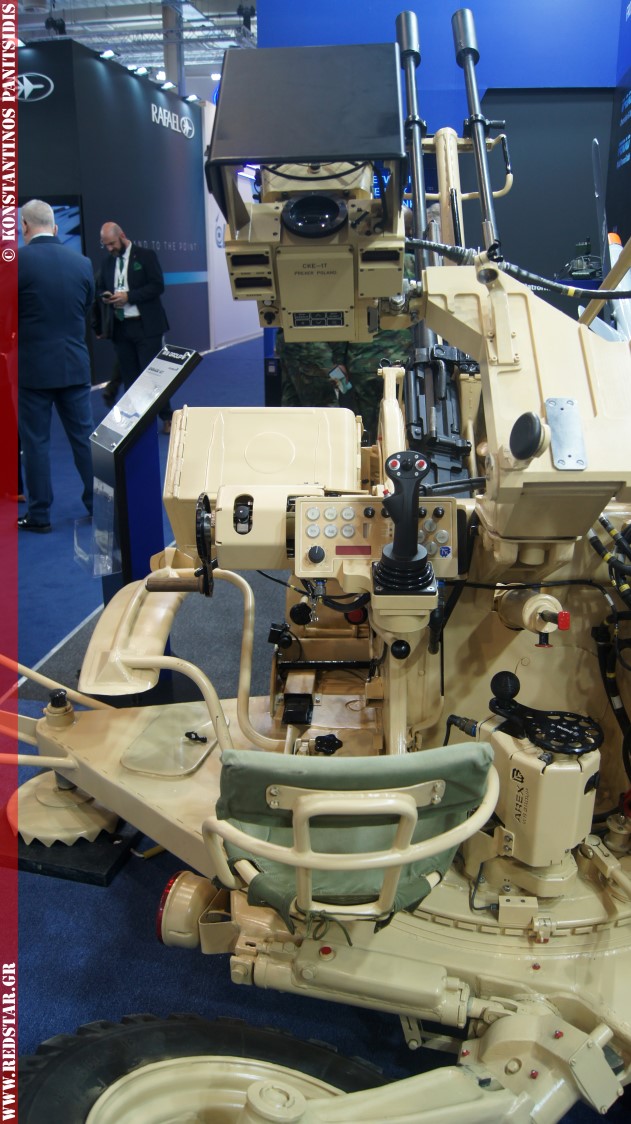

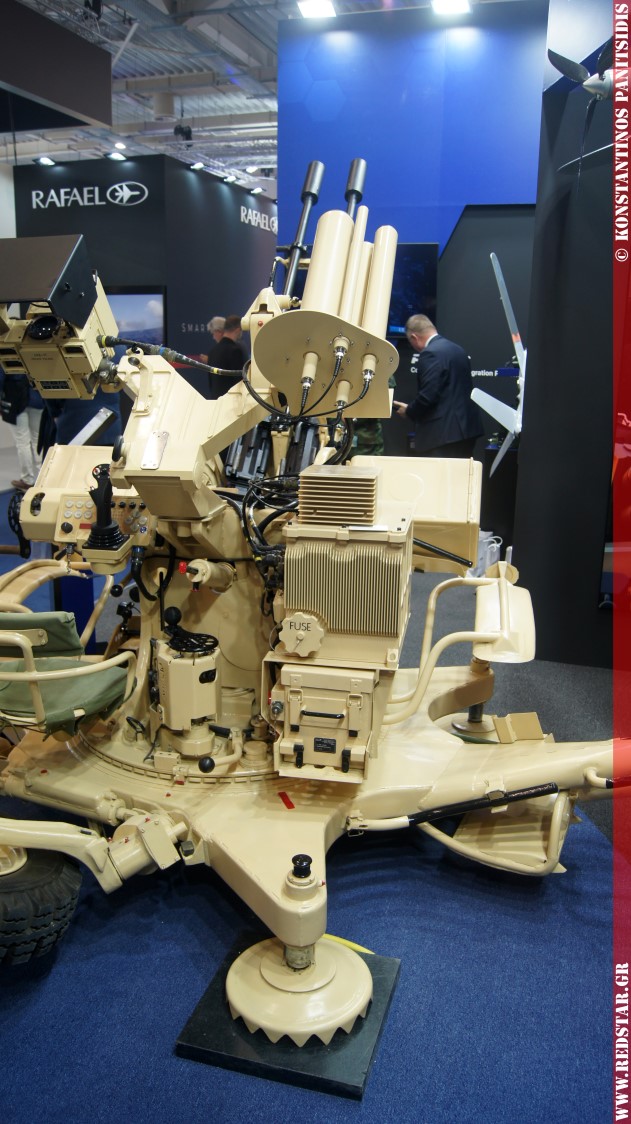

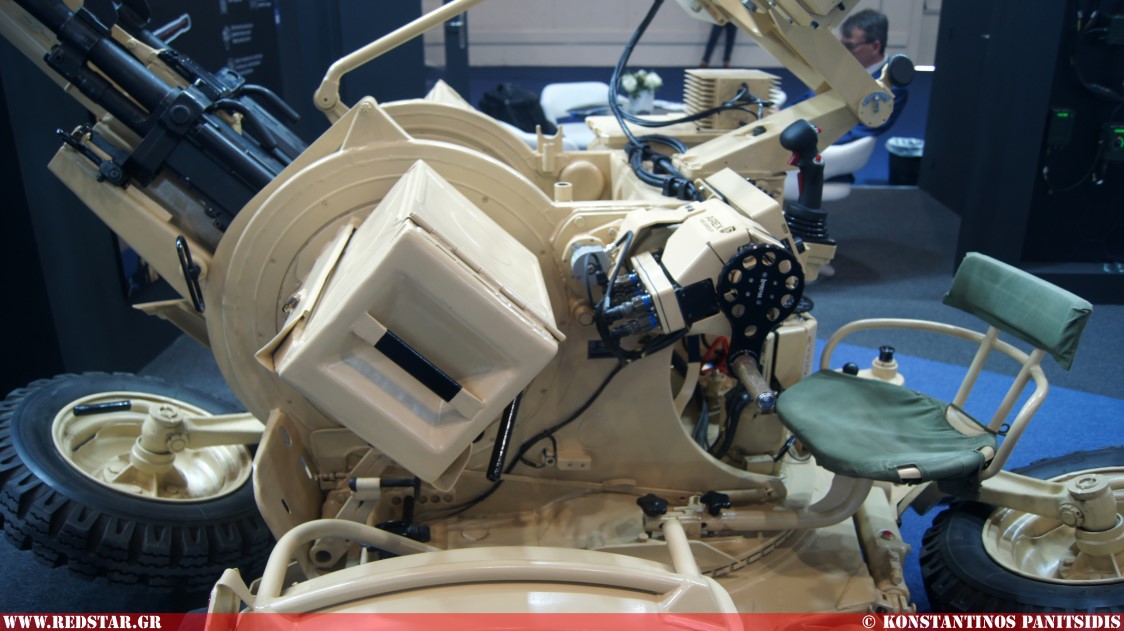

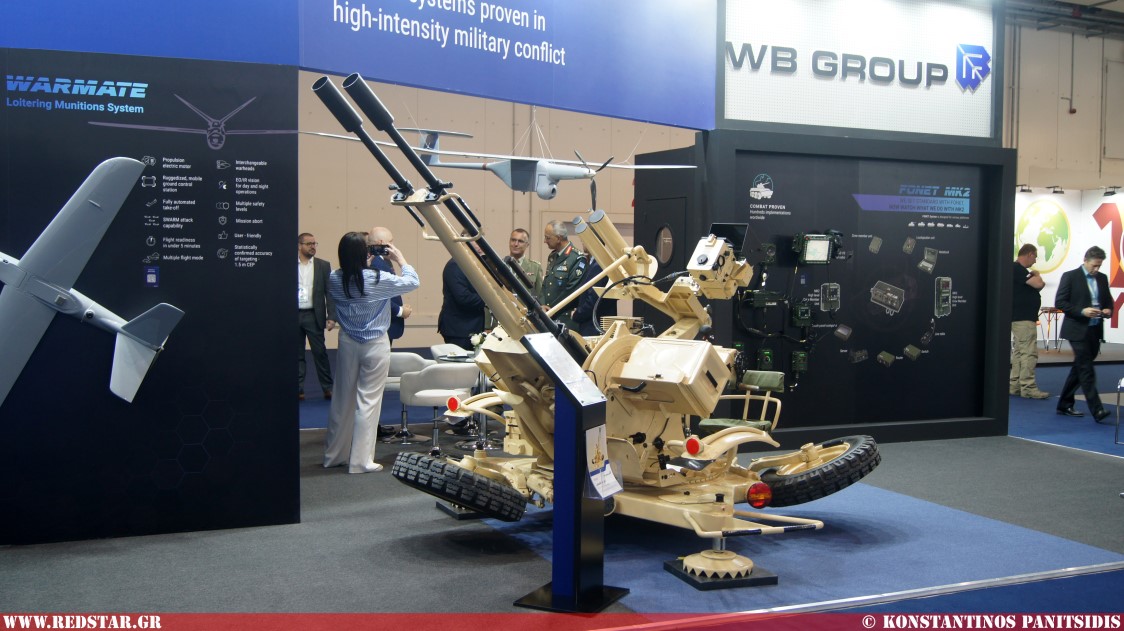

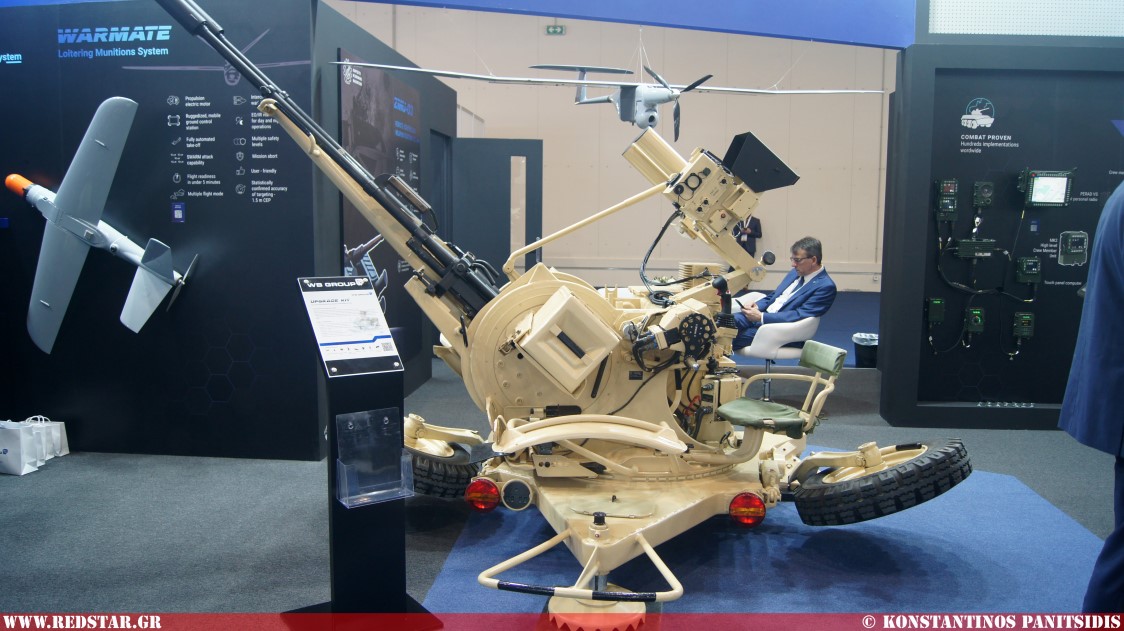

Upgrade Kit for 23mm Anti-Aircraft Twin-Barreled Autocannon ZU-23-2. Electromechanical Equipment ARM-28.

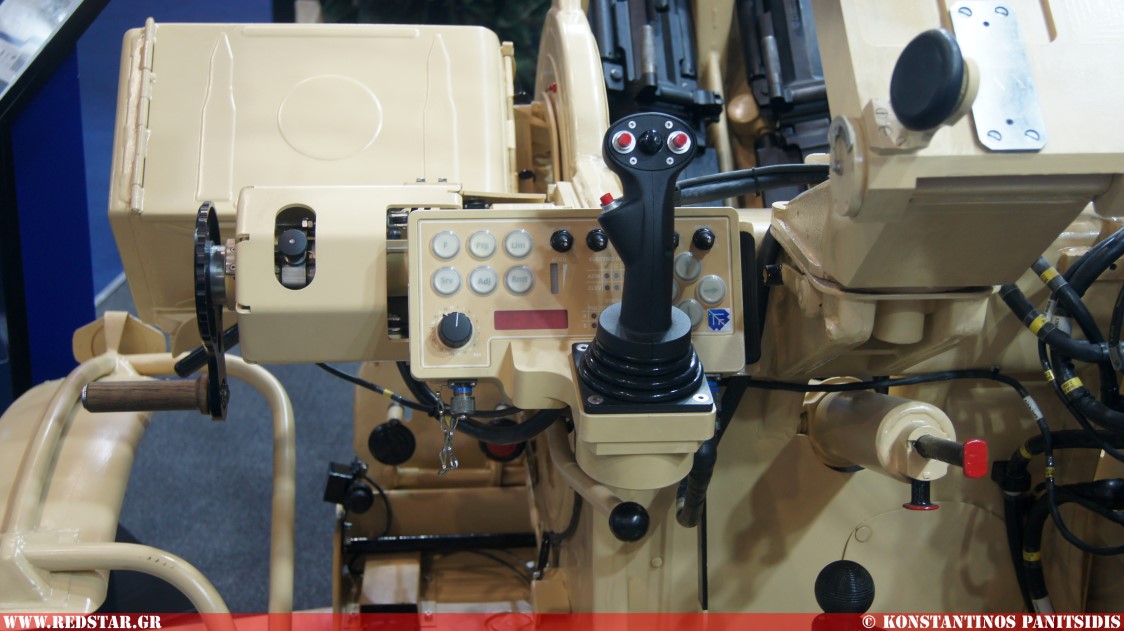

Designed to upgrade the licensed anti-aircraft twin-barrelled autocannon ZU-23-2. Digitally controlled electric drive (with emergency manual drive) allow to achieve both precise guidance and high-speed gun movement. Guidance can be carried out by operator using a a joystick or automatically rom the external fire control system (FCS). Electromechanical Equipment ARM-28 cooperates with modern optoelectronic sights that allow shooting with both traditional ammunition (OFZ, OFZT) and modern sub-calibre ammunition APDS-T.

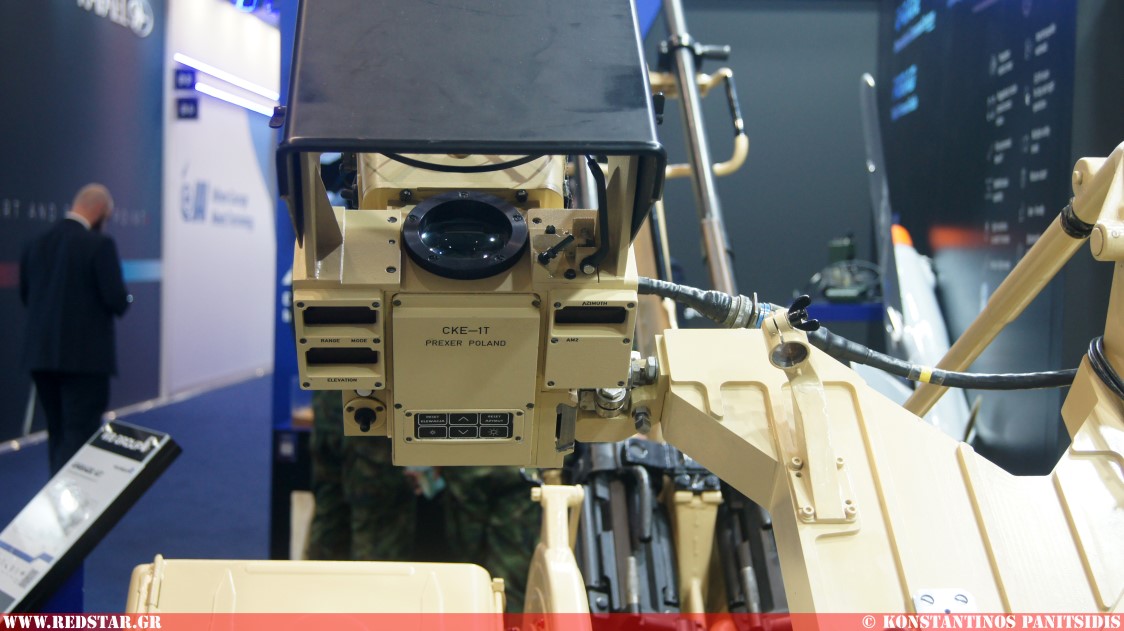

Scope of modernization - installation of electric drives in azimuth and elevation with emergency mode - installation of the operator panel and manipulator - installation of sensors for rotation speed measurement - replacement of sight 2C27 for the electronic sight that enables shooting using ammunition type: OFZ, OFZT, APDS-T.
- installation of Electrical Control Unit - installation of autonomous power supply unit - installation of voice communication - cannon modes: manual, semi-automatic and automatic.
Technical specifications
| DESIGNER | JSC "Instrument desing Bureau" |
| COUNTRY | Russia |
| TYPE |
Towed 23 mm Anti-aircraft Twin Autocannon
|
| CREW | 5 |
| DIMENSIONS | |
| Barrel length without the flash suppressor, mm | 1880 |
| Barrel length without the flash suppressor, mm | 2010 |
| Cannon length without the flash suppressor (with automatic mechanism), mm | 2425 |
| Cannon length with the flash suppressor (with automatic mechanism), mm | 2555 |
| Cannon's dimensions in combat position, mm | |
| - length | 4620 |
| - width | 1870 |
| - height | 1940 |
| WEIGHT | |
| Mass of the installation in the stowed position (with covers and equipped box cartridges), kg | 950 |
| MOBILITY (behind the car) | |
| Maximum speed (on road), km/h | up to 70 |
| Maximum speed (on cobblestone road), km/h | up to 40 |
| Maximum speed (impassibility of roads), km/h | up to 35 |
| Maximum speed (impassibility of roads), km/h | up to 20 |
| Time to transfer the unit from traveling to combat position, sec | 15 - 20 |
| Time of installation conversion from combat position to mobile, sec | 35 - 40 |
| Time to change the cartridge box, sec | 5 - 10 |
| ARMAMENT | |
| Barrel caliber, mm | 23 |
| Number of barrels | 2 |
| Shell's nuzzle velocity of OFZ projectile, m/s | 980 |
| Muzzle velocity of BZT and OFZT, m/s | 970 |
| Maximum vertical range, m | 1.500 |
| Maximum angular range, m | 2.500 |
| Maximum horizontal range, m | 2.000 |
| Theoretical Rate of fire (from both cannons), rds/min | 1.600 - 2.000 |
| Practical rate of fire (from two barrel), rds/min | up to 400 |
| Firing angle in the horizontal plane (Traverse), degrees | 360 |
| Firing angle in the vertical plane (Elevation), degrees | from -10 up to +90 |
| Firing angle in the vertical plane over the wheels (Elevation over the wheela), degrees | from -3 up to +90 |
| The table shows the performance characteristics of the ZU-23 gun. |
