NATO reporting name: SS-C-1 “Sepal”
Entered service: 1966
All systems are retired from active service in 2019 or 2022.

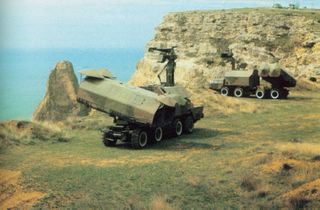

ΤThe system is designed to engage large and medium surface ships, transports and landing transport ships. The system comprises: Skala control system, SPU-35V self-propelled launcher, transloader, ground equipment for cruise missile preparation, progress antiship cruise missile. Missile guidance: autonomous control, telecontrol, homing.
Technical specifications
| DESIGNER | NPO Mashinostroyeniya (OKB-52) |
| COUNTRY | Russia |
| TYPE |
Coastal Defense Missile System
|
| CREW | 5 |
| POWER-PLANT | One turbojet engine |
| - launch engine | Two Solid - propellant rocket |
| Thrust, kgf | 2x30.000 |
| Launch motor operating time, sec | 2 |
| ROLLING CHASSIS | ZIL-135K (BAZ-135MB), 8x8 |
| Weight of launcher with missile, kg | 21.000 (~18.000) |
| Maximum speed, km/h | 40 |
| Fuel endurance, km | 500 |
| DIMENSIONS | |
| Length, m | 9,45 (with other sources 9,75 or 9,88 or 10,00) |
| Wing span, m | 2,6 |
| Span with folded wing, m | 1,544 |
| Diameter, m | 1,0 |
| Height | 1,5 |
| WEIGHT | |
| Weight of launcher with missile, kg | 4.500 |
| Empty weight, kg | 2.330 |
| Warhead weight, kg | ~1.000 |
| Nuclear warhead (warhead) power, TNT | 350 |
| PERFORMANCE | |
| Maximum speed, km/h | 1.837 |
| Cruise missile flight altitude, m | 400, 4.000 and 7.000 |
| Cruise missile flight altitude (end stage), m | 100 |
| Angle of sinking of a missile with a call to the target, degrees | 80 |
| Range, km: | until 460 |
| - min | 25 |
