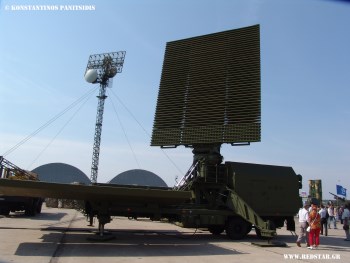

.jpg "Protivnik-GE - Mobile 3-D L-band radar © Konstantinos Panitsidis")
In numbers Through the lens Video
The Protivnik-GE radar boasts high immunity to jamming and clutter, high detection accuracy, and high mobility.
CAPABILITIES
- detection, position measurement and tracking of strategic and tactical aircraft, ASALM-type missiles, and small-size, lowvelocity aircraft
- target class recognition
- identification friend-or-foe
- jammer finding
- output of targeting data to fighter aviation and/or surface-to-air missile systems
OPERATIONAL FEATURES
- high degree of automation in operations
- high immunity to interference
- automatic output of radar data to two users simultaneously
- automatic clutter map generation
- adaptation to interference environment and to technical condition of the radar
- built-in test system for functional checkout and monitoring of the hardware.
Technical specifications
| DESIGNER | Nizhny Novgorod NNIIRT |
| COUNTRY | Russia |
| TYPE |
Mobile 3-D L-band radar
|
| CREW | -3 |
| Frequency band | L |
| Coverage: | |
| range | 10 to 400 km |
| azimuth | 360 deg |
| elevation | up to 45 deg |
| altitude | up to 200 km |
| Airborne target detection range (RCS = 1.5 sq m) | 340 km |
| Position measurement errors: | |
| range | 100 m (max) |
| azimuth | 12 min (max) |
| elevation | 10 min (max) |
| altitude | 450 m (max) |
| Ground clutter suppression | at least 50 dB |
| Track capacity | 150 targets |
| Target classes identified | 8 |
| Antenna | planar phased array |
| Data rate | 10/5 s |
| Power consumption | 100 kW |
| Deployment time | 15 min (max) |
