Forward-scattering radar system for detection of small-sized and low-observable low-flying targets.
 |
| The multi-position radar system forms a radar fence of an overall extension of up to 500 km and detects any airborne objects. |
CAPABILITIES
- automatic detection and measurement of coordinates and trajectory parameters of airborne targets including small-sized low-flying aircraft, cruise missiles and Stealth targets
- target class recognition
- radar data output to air defence operations centres for enhanced readiness of the forces and facilities.
The Barrier-E multiple-link radar system extends the radar field of an air defence complex to low and very low altitudes by building up 'radarfences'.
THE FORWARD-SCATTERING RADAR METHOD OFFERS A NUMBER OF ADVANTAGES
- target 'visibility' increases by a factor of 103-104 as compared with conventional radars
- detection performance is not degraded by antiradar coating on the target
- detection of targets that are not easily if at all detectable by conventional radars, such as:
Light aircraft and hang gliders / Cruise missiles;stealth aircraft
Remotely controlled air vehicles / low-altitude fighters.
- low radiated power
- high detection probability for small targets
- low false alarm rate
Technical specifications
| DESIGNER | OJSC Alma-Antey Concern |
| COUNTRY | Russia |
| TYPE |
Forward-scattering radar system for detection of small-sized and low-observable low-flying targets
|
| CREW | - |
| Number of transporting vehicles (main) | - |
| Frequency band | L |
| Detection coverage: | multiple links |
| - extension of a single link | up to 50 km |
| - radar fence width (depends on target type) | 1.5-8 km |
| - radar fence height | 0.03 - 7 km |
| Maximum number of links | 10 |
| Detection probability | not worse than 0.9 |
| False alarm rate | not more than 1 in 72 hours |
| Position measurement accuracy: | |
| - along the fence | 300 - 1500 m |
| - across the fence | 80 - 200 m |
| Identified target classes | 4 |
| Data rate | 1 sec |
| Output data format | target tracks |
| Power consumption: | |
| - transmitter/receiver post | 0.8 kW |
| - operator position | 0.8 kW |
| - operator position | 0.3 kW |
| Attending personnel: | |
| - operator position | 1 |
| - transmitter/receiver post | 1 |

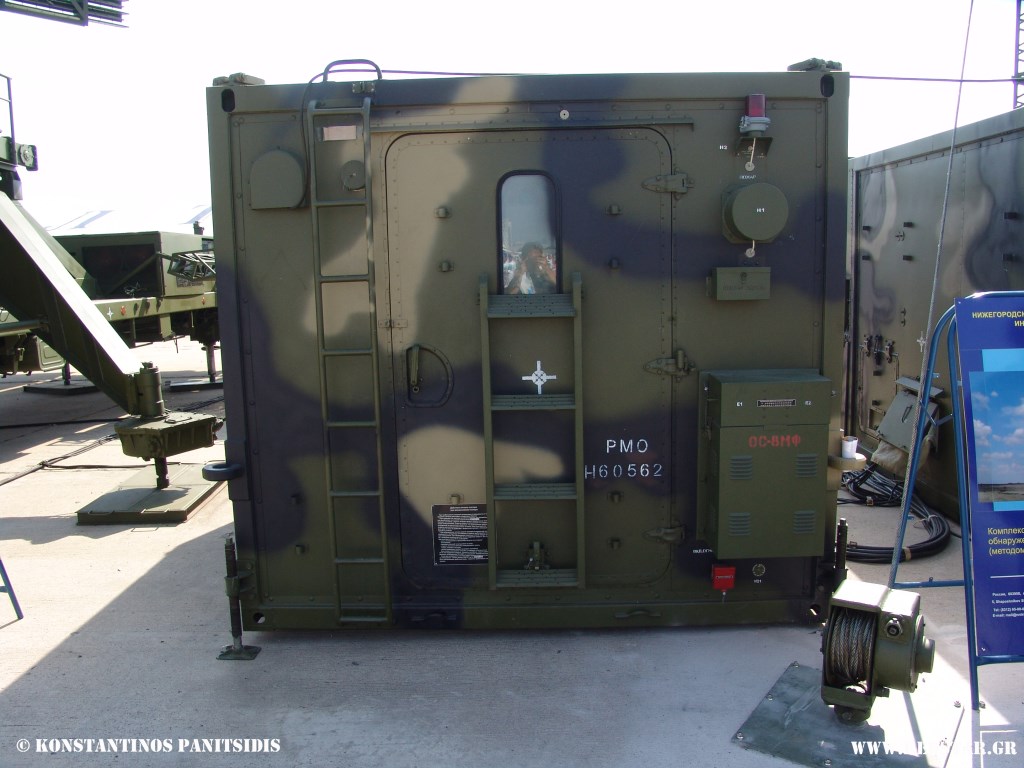

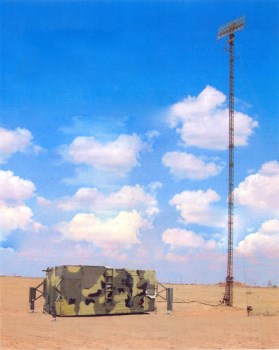

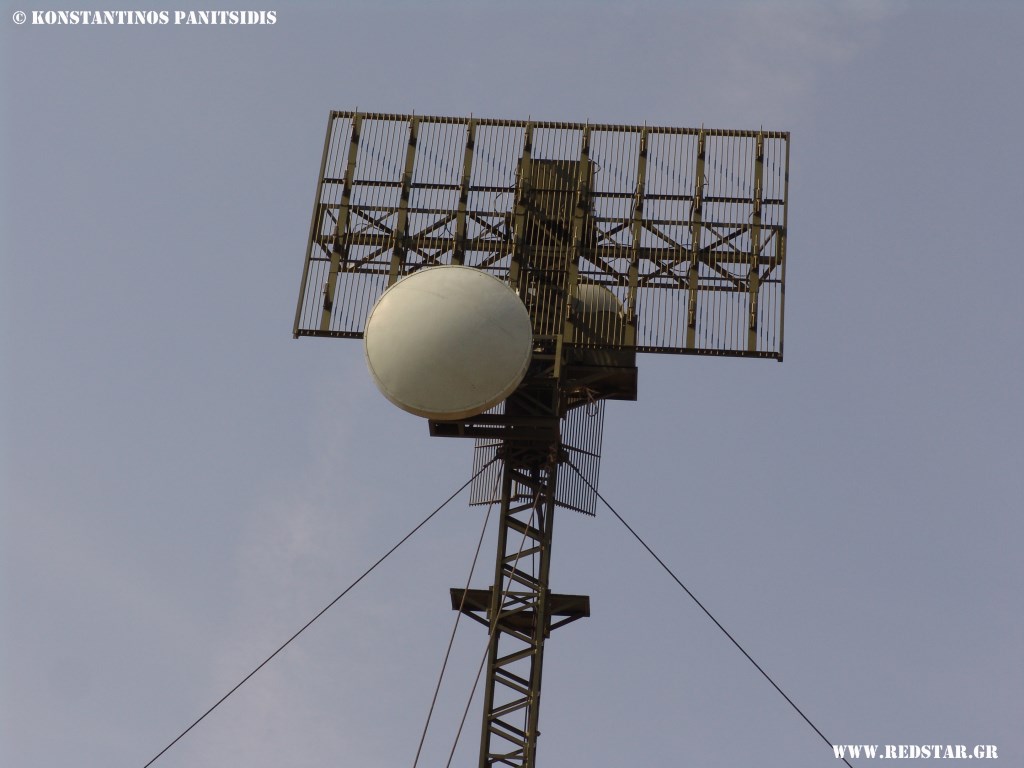

Photos BARRIER-E Forward-scattering radar system for detection of small-sized and low-observable low-flying targets
