CAPABILITIES
- acquisition (detection, position measurement and tracking) of fixed-wing aircraft, cruise missiles, and UAVs
- identification friend or foe
- automatic tracking data output to external users
FEATURES
- automatic operations with minimal human participation
- nonhazardous sustained presence of personnel in immediate proximity to the radar (the power level of the transmitted pulse is safe for humans)
- the portable version of the radar enables rapid delivery to any station, including adverse terrain and mountainous areas.
 |
 |

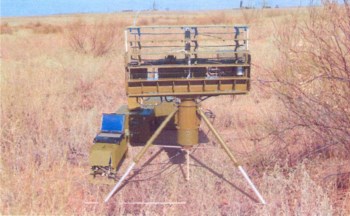

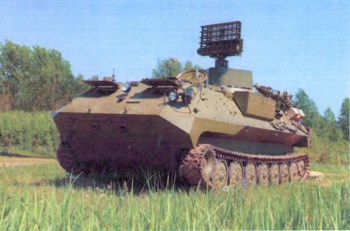

| 1L122-2E Small-Sized Radar Systems. Configuration: Portable | 1L122-2E Small-Sized Radar Systems. Configuration: Vehicle-Mounted |
Technical specifications
| DESIGNER | OJSC Alma-Antey Concern | OJSC Alma-Antey Concern |
| COUNTRY | Russia | Russia |
| TYPE |
1L122-1E
|
1L122-2E
|
| Frequency band | L | L |
| Coverage limits: | ||
| - range | 1-40 km | 1-80 km |
| - azimuth | 360o | 360o |
| - elevation | -5o to 45o | 0o to 60o |
| - altitude | 10 km | 20 km |
| - airborne target velocity | 700 m/s | 700 m/s |
| Position accuracy for a single target with 1 m2 RCS in clear conditions: | ||
| - range | 100 m | 100 m |
| - azimuth | 0,5o | 0,33o |
| - elevation | 1,5o | 1o |
| Interference immunity: | ||
| - localised ground clutter | 55 dB | 55 dB |
| - noise jamming | 18 dB | 18 dB |
| - other clutter | 40 dB | 40 dB |
| Data rate | 2/4 s | 4/10 s |
| Power consumption (max) | 800 W | 5.000 W |
