The stand-off loitering munition AIHMI  AHM-1X was developed by the Greek company SAS Technology within the framework of designing advanced unmanned aerial systems. The system is based on a specialized transport and launch platform, designated AHX-1X, which has been configured to carry Hydra 70-type munitions.

Hydra 70: The Hydra 70 missile has a length of 1.06 m, a diameter of 70 mm, a tail span of 186 mm, and a launch weight of 6.20 kg. It is equipped with a standard warhead weighing 4.50 kg. The Hydra 70 is capable of carrying alternative warheads, depending on the specific mission requirements.

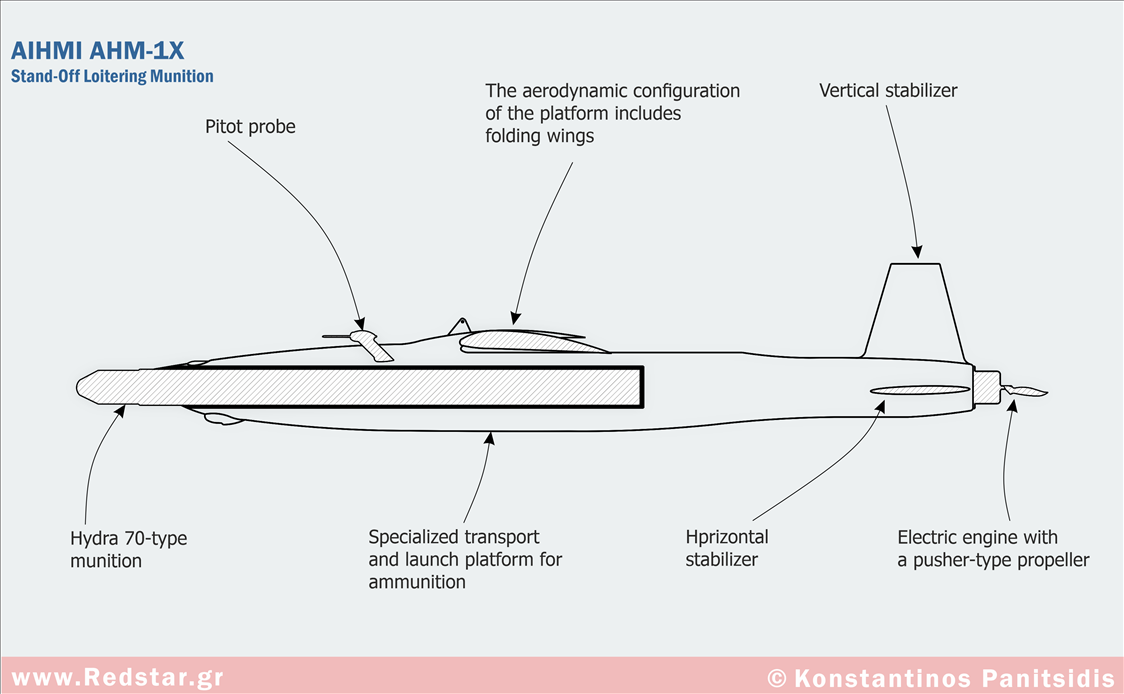

The aerodynamic configuration of the platform includes folding wings, aimed at optimizing flight performance and increasing operational range. Propulsion is provided by an electric engine with a pusher-type propeller, installed at the rear of the fuselage.

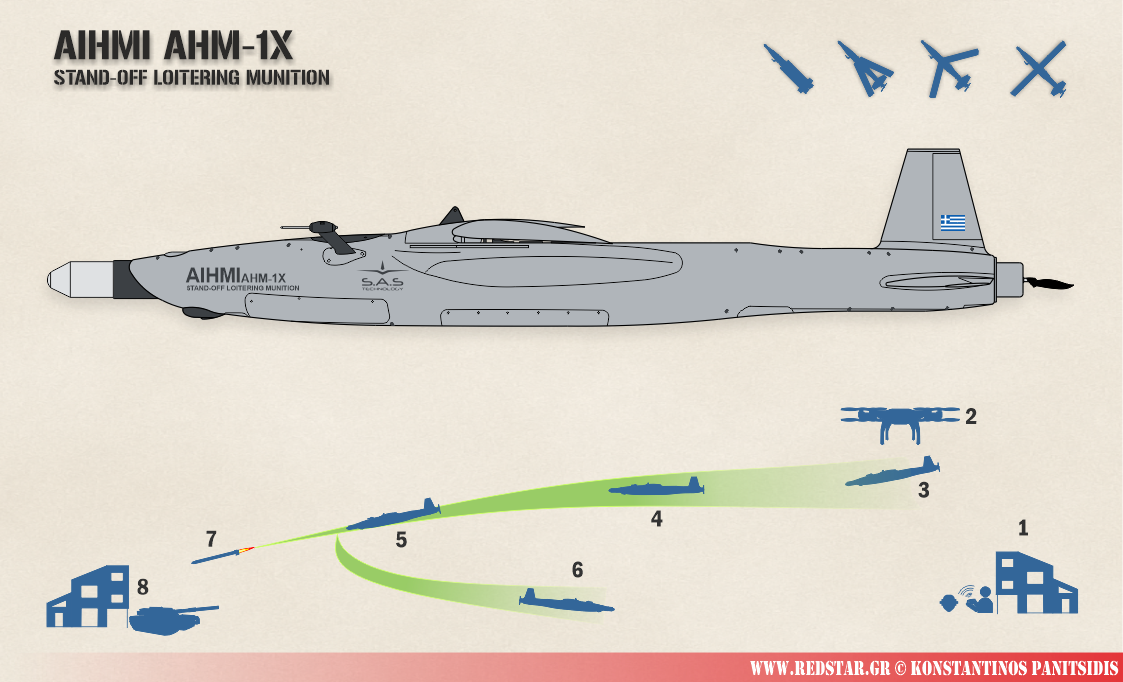

1 Transmits GPS coordinates and designates target  2 Sarisa UAV carrying an AHM-1X “AIHMI” with a Hydra 70 rocket onboard  3 Rocket fire
4 AHM-1X “AIHMI” auto flight to target  5 Launching the munition at the target  6 The projectile is released, and the platform is directed to a safe location for its retrieval  7 The projectile is directed towards the target  8 Target.

The system can be guided either via remote control using an FPV camera or through autonomous navigation based on pre-defined GPS coordinates, offering flexibility depending on the operational scenario.

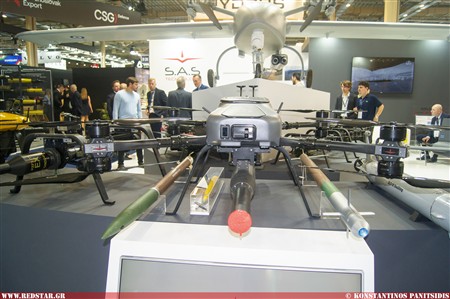

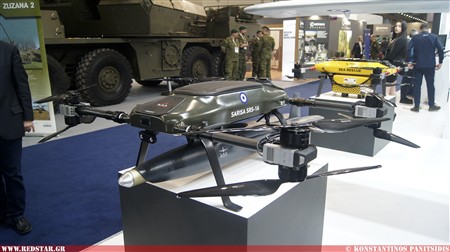

SRS-1A Sarisa-Tactical Aerial Platform with stand-off loitering munition AIHMI AHM-1X.	SRS-2A Sarisa-Tactical Aerial Platform, 60 kg MTOGW, 20 min flight time, 2x2,75” Hydra rockets payload.

To achieve extended range, the AHM-1X can be transported and deployed by the SRS-1A Sarisa and SRS-2A Sarisa vertical take-off and landing (VTOL) octocopters, as well as by the TALOS II fixed-wing UAVs, all developed by SAS Technology. Additionally, following appropriate technical modifications, the system can be integrated into military helicopters and low-speed aircraft.

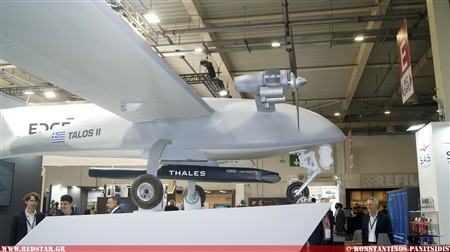

UAV TALOS ΙΙ

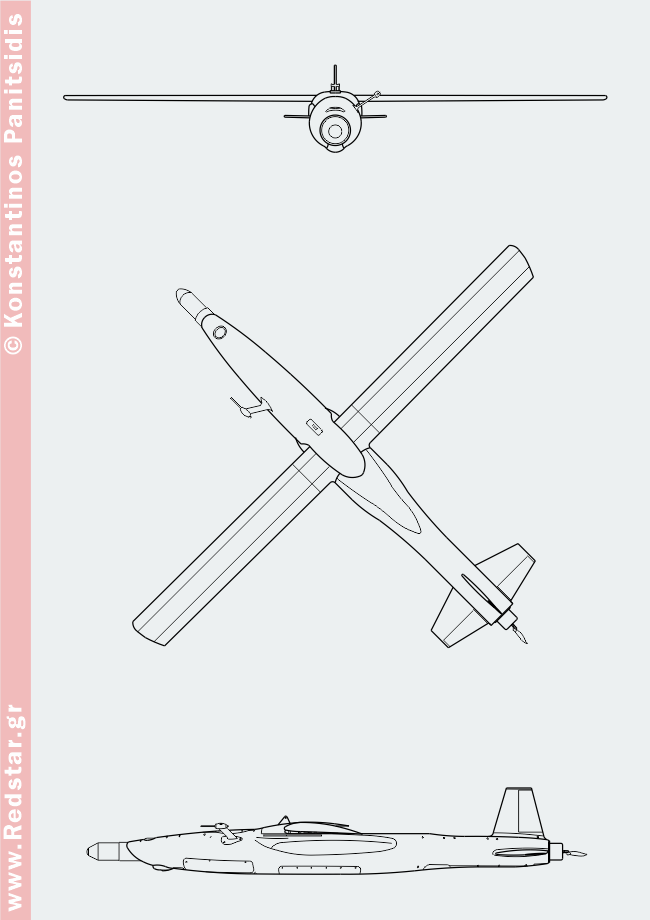

Three-view drawing

Technical specifications

Photos ΑΙHΜI AHM-1X
