A light twin-engine medical helicopter developed by the Italian company Agusta based on the AW-109 Grand.
The helicopter is equipped with a medical module with the ability to transport up to one victim with accompanying medical personnel and provide emergency medical assistance on board the helicopter on the ground and in flight.
The helicopter can carry one stretchers with injured and the accompanying medical staff. The aircraft can also carry an incubator for the transport of newborns or the negative pressure chamber (special capsule for transporting patients with infectious diseases).
.jpg "One of the two Agusta AW-109S Trekker with EKAB colors, is a donation of the Stavros Niarchos Foundation. The two S Agusta AW-109S belong to in HAF, with air base Elefsina © Konstantinos Panitsidis")
One of the two Agusta AW-109S Trekker with EKAB colors, is a donation of the Stavros Niarchos Foundation. The two S Agusta AW-109S belong to in HAF, with air base Elefsina.
Medical helicopter (Emergency Medical Service) Agusta AW-109S Trekker of the National Ambulance Center of Greece. Both aircraft with s/n 22701 and 22704 were delivered in 2020-2021.

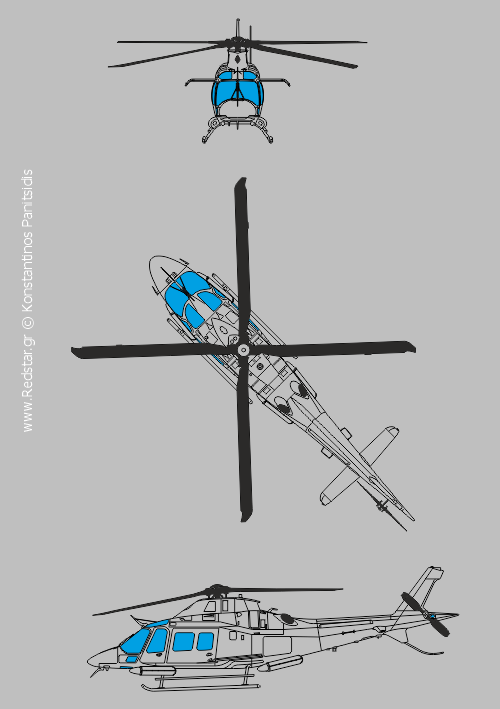

Three-view drawing
Technical specifications
| DESIGNER | Agusta |
| COUNTRY | Italy |
| TYPE | Emergency Medical Service |
| CREW | 1 - 2 |
| POWER-PLANT | Two Pratt & Whitney Canada PW207C turboshaft engine |
| Power, s.h.p. | 2x735 |
|
DIMENSIONS
|
|
|
Length, m
|
12,96 (11,648) |
|
Main rotor diameter, m
|
10,83 |
|
Tail rotor diameter, m
|
1,940 |
|
Width, m
|
3,29 |
|
Height, m
|
3,395 |
| WEIGHT | |
| Maximum take-off, kg | 3.200 |
| Normal take-off, kg | 3.175 |
| Empty, kg | 1.870 |
| Internal fuel, l | 563 |
| Payload, kg | - |
| PERFORMANCE | |
| Maximum speed, km/h | 302 |
|
Patrol speed (sea level), km/h
|
222 |
|
Maximum overload, g
|
-
|
|
Rate of climb (sea level), m/s
|
8,8 |
|
Service ceiling, m
|
4.880 |
|
Static ceiling, m
|
4.750 |
|
Range (with fuel 699 l, without the spare fuel, H=1.524 m), km
|
706
|
|
Combat range, km
|
-
|
|
Maximum endurance (with fuel 699 l, H=1.524 m), h
|
3,4
|
| ARMAMENT | Doesn't have (defensive). |
