Introduction in Hellenic Air Force in: 1980
348th Tactical Reconnaissance Squadron “Eyes”
Location: 110th CW – Larisa Air Base
Year of establishment: 1953
Subordination: 110th Combat Wing
Aircraft serving: RF-4E Phantom II
Mission: It's main task is conducting reconnaissance day and night.

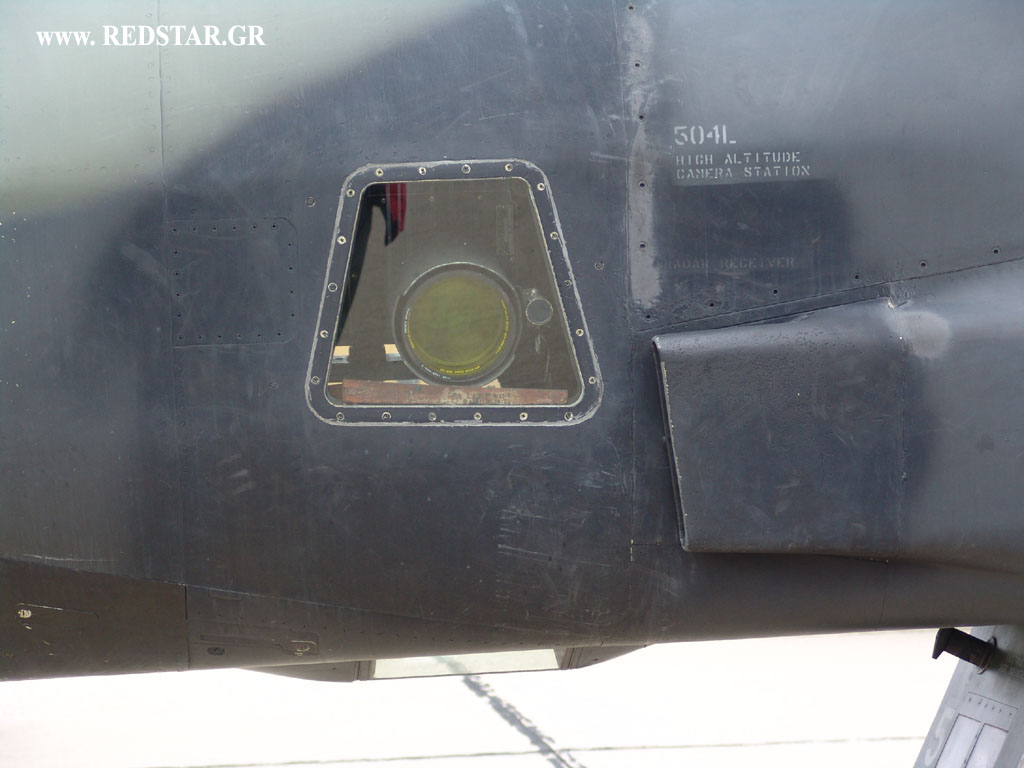

The Greek RF-4E equip the 348th Tactical Reconnaissance Squadron and can carry a wide variety of cameras for photo-capturing, from virtually, all heights.
All RF-4E Phantoms remained active until 5 May 2017, when they were retired.
| Cameras |
.jpg "Τα ελληνικά RF-4E εξοπλίζουν την 348 Μοίρα Τακτικής Αναγνώρισης και μπορούν να φέρουν / εξοπλιστούν μια μεγάλη ποικιλία φωτογραφικών μηχανών για φωτοαναγνωριση από όλα σχεδόν ύψη © Konstantinos Panitsidis") |
Patches
 |
Technical specifications
|
DESIGNER
|
McDonnell Douglas |
|---|---|
|
COUNTRY
|
USA |
|
TYPE
|
Reconnaissance plane |
|
CREW
|
2 |
|
POWER-PLANT
|
Two General Electric J79-GE-17A/C turbojet engines |
| Thrust, kgf | 2x8.280 |
|
DIMENSIONS
|
|
|
Length, m
|
19,20 |
|
Height, m
|
5,03 |
|
Wing span, m
|
11,71 |
|
Wing area m2
|
49,24 |
| WEIGHT | |
| Maximum take-off, kg | 26.330 |
| Normal take-off, kg | - |
| Empty aircraft, kg | - |
| Internal fuel, kg | - |
| Warload, kg | 2.265 |
| - external tank, l | up to 5x1.401 |
|
PERFORMANCE
|
|
|
Maximum speed, km/h
|
2.410 |
|
Cruising speed, km/h
|
- |
| Economic speed, km/h | - |
|
Maximum overload, g
|
-
|
|
Rate of climb, m/min
|
15.200
|
| Service ceiling, m | 21.600 |
| Range, km | 4.180 |
| Combat range, km | 958 |
| ARMAMENT | Possibility of transport 2-4. Air-to-air missile AIM-/Shafrir/Python, Six bombs (6xBL-755) and launcher. |
