S-300PMU-1 Long-range SAM system

In numbers  Through the lens  Video

Entered service with the Air Force in 2000 (HAF)

It's a medium range anti-aircraft system, for the protection from A/C, ballistic missiles, troops and the shielding of vital installations.

The long-range SAM system S-300PMU-1 is a further evolution of long-range SAM system S-300 PM with the export code name S-300PMU-1. The designing of the system began in 1985 and in 1993 it joined the service.

Brief description of the system:

S-300PMU-1: Command and Control Center 83M6E

S-300PMU-1: Engagement Station / Fire Control Radar 30N6E

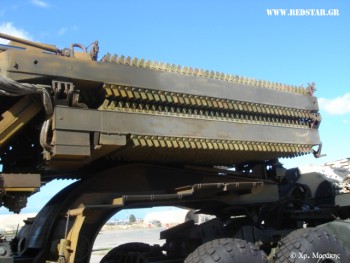

S-300PMU-1 Missile System Research (detection) Radar

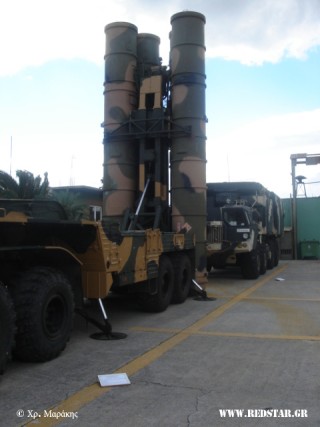

S-300PMU-1: Launcher  5P85TE

S-300PMU-1: Missile type 48N6E

Designer MKB "Fakel". Production PO "LSZ". Status in service. Power plant: Solid propellant rocket. Rocket engine run time up to 12 s. Dimensions: Length 7,5 m, diameter, 0,52 m, wing span 1,13 m. Weght: 1.800 until 1.900 kg. Warhead type: Fragmentation, 145 kg. Performance: Maximum speed until 7.560 km/h. Maximum range 150 km. Target g-load 25 g. "Specified service life" missile pod, years 10. Guidance system: Through a combination of the missile.

Photos S-300PMU-1 Long-range SAM system
