In numbers Through the lens Video
ALTUS LSA develops and produces the OURANOS UAS, a very reliable fixed wing platform with an optimized up to 10 hours flight endurance and a flight envelope of best in class performance. OURANOS features a highly advanced autopilot system and a standard gyro-stabilized dual EO & IR sensor configuration with geo location and geo tracing capabilities.
ALTUS LSA receives the first UAS Airworthiness Certification by the Hellenic Civil Aviation Authority.

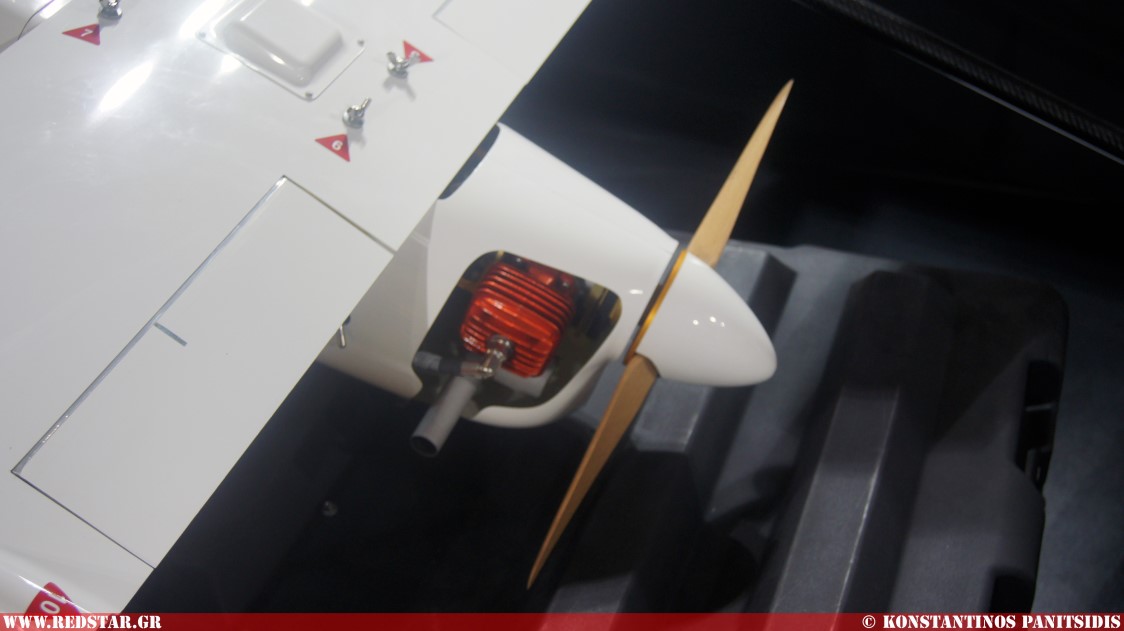

.jpg "The \"Ouranos\" is equipped with a piston engime with system EFI (Electronic Fuel Injection) that delivers 2.5 hp.") |
| The "Ouranos" is equipped with a piston engime with system EFI (Electronic Fuel Injection) that delivers 2.5 hp. |
Technical specifications
| DESIGNER | ALTUS LSA |
| COUNTRY | Greece |
| TYPE | UAS |
| CREW | - |
| POWER-PLANT | One piston engine |
| Power, h.p. | 1x2,5 |
|
DIMENSIONS
|
|
|
Length, m
|
2,27 |
|
Height, m
|
- |
|
Wing span, m
|
3,3 |
|
Wing area m2
|
0,79 |
| WEIGHT | |
| Maximum take-off, kg | 22,5 |
| Normal take-off, kg | - |
| Empty aircraft, kg | 10,00 |
| Internal fuel, kg | - |
| Payload, kg | 10,00 |
| PERFORMANCE | |
| Maximum speed, km/h | 129,6 |
|
Cruising speed, km/h
|
79,2
|
|
Stall speed, km/h
|
46,8 |
|
Maximum overload, g
|
- |
|
Rate of climb, m/min
|
- |
| Service ceiling, m | 5.000 |
| Take-off distance, m | Catapult, runway |
| Landing gear | Parachute |
|
Range, km
|
until 100 |
|
Endurance, h
|
until 10 |
| ARMAMENT | Doesn't have (defensive). |
Photos Ouranos Unmanned aerial system long endurance
