Mi-28NM Multipurpose attack helicopter. First flight: 2016 © Grigoriy Sh.

Photo Mi-28NM © Grigoriy Sh.

 Technical specifications      Photos      Video



NATO reporting name: Havoc
Letter «NM» - Night Upgraded
A contract was signed for the supply of 98 helicopters to for the army (2021).

Two-seat, twin-engine, modernized army combat helicopter of round the clock action, aerial reconnaissance and target designation, single-rotor scheme, developed on with the Mi-28N (Mi-28UB) base. Modern equipment and systems have been introduced into the design of the helicopter. All these solutions and improvements in combat characteristics were obtained as a result of the use of the Mi-28 helicopter in hostilities in Syria, which led to the decision to modernize the helicopter.. The first flight of the Mi-28NM helicopter was performed on July 29, 2016.


Mi-28NM Multipurpose attack helicopter © Konstantinos Panitsidis


Features of the modified helicopter:

- helicopter has a new targeting and search system.

- the armored cabin protects the crew from armor-piercing bullets of 12.7 mm and shells of up to 20 mm caliber.

- airborne radar station (radar N025).

- new control system with elements of artificial intelligence.

- modern airborne defense system (ECM).

- increased the radius of combat use of the helicopter.

- increased range of aviation weapons.

- installed upgraded helicopter engines with improved performance VK-2500P ODK-Klimov and an auxiliary power unit TA14-130-28.

- installation of interfacing equipment with UAVs and LMUR (Light multipurpose guided missile).

- dust Protection Unit (it is also possible to install a multi-cyclone dust protection unit).

- the crew has a integrated helmet and display sight system (night vision goggles).

- Improved main-rotor blades resulting in an increase in maximum speed by up to 13% and cruising speed by 10%.

- the helicopter has minimal visibility for ground-based air defense systems.

- has a duplicate control system.

- the cockpit is equipped with multifunctional color indicators.


Brief technical description:

Combat helicopter Mi-28NM designed by Mil Moscow Helicopter Plant. Designed and built according to the classic single-rotor scheme with a five-bladed main rotor and a four-bladed tail rotor, an X-shaped scheme (tail rotor blades are installed at an angle of 45o and 135o to reduce noise levels) and an auxiliary wing. The helicopter is equipped with two VK-2500P turboshaft engines.

The helicopter can be apply:
- search and destruction of armoured vehicles, single and group targets, artillery and battle anti-aircraft defense means, fighting enemy low-speed aircraft, aircraft reconnaissance and target detection when accomplishing combat missions.
- training of air cadets from military schools and improvement of flight proficiency of the helicopter crew.


Mi-28NM © Konstantinos Panitsidis

1. Improved main-rotor blades resulting in an increase in maximum speed by up to 13% and cruising speed by 10%. 2. Command transmitting antenna. 3. L-150-28 Antenna (radar warning receiver). 4. Search-landing light. 5. The cockpit is equipped with multifunctional color indicators. 6. Cabin glazing withstands bullets up to 12.7 mm caliber and also withstands 20 mm cannon shells. 7. The crew has a integrated helmet and display sight system (night vision goggles). 8. Dust Protection Unit (it is also possible to install a multi-cyclone dust protection unit). 9. On-board radar station (ratar type N025). 10. L-140M laser warning receiver. 11. Upgraded engines with improved performance VK-2500P ODK-Klimov and APU type TA14-130-28 (VK-2500-02 turboshaft engine). 12. Exhaust-heat suppressor. 13. Communication radio antenna. 14. Satellite antenna. 15. X-shaped tail-rotor. 16. 30 mm 2A42 gun. 17. Pilot's surveillance station (SMS-550 pilot's turret). 18. Operator-navigator's surveillance / targeting station (OPS-28M Tor-M electro-optical turret). 19. Gimbaled turret gun. 20. Light multipurpose guided missile “305” . 21. Pod for special equipment (L-370-2 ultra-violet warning receiver). 22. UV-26 chaff and flare launcher. 23. Cargo compartment for the transportation of various equipment, and possibly the evacuation of the crew of another helicopter. 24. Antenna. 25. Signal-flare launcher. 26. SW radio antenna. 27. IFF antenna. 28. L-150-28 Antenna izdelye L-150-28 (radar warning receiver).


The cockpit is armored, consists of a navigator-operator (in front) and a pilot (rear).

The crew rescue system includes energy-absorbing seats with an increased cushioning stroke of up to 30 cm and a system for attaching seat belts to the pilot's and navigator's seats, allowing an emergency landing with vertical speeds up to 12 m/s.

Flight instruments - the helicopter is equipped with a full set of instrumentation that allows piloting and solving air navigation tasks at any time of the day and in difficult meteorological conditions. The instrumentation is located in the cockpit at the workplaces of the navigator-operator and pilot.

Fuselage - The fuselage of the helicopter is an all-metal semi-monocoque, consisting of a nose, a central part, a tail boom and a tail pylon. The nose of the fuselage includes a fairing, cockpit. The central part of the fuselage consists of a wing and a rear compartment, turning into a tail boom. The tail boom is all-metal, variable section, is an integral part of the power structural of the fuselage. It houses the front of the tail shaft, the tail rotor control wiring.

Wing - The helicopter is equipped with a low aspect ratio wing, span of 4.88 m - mid wing, cantilever, with a anhedral (angle "V"). For transporting weapons, installed on the wing has four pylons (two for each wing plane). An airborne defense complex (defense device) was installed at the ends of the wing.

The helicopter landing gear consists of two main support and one tail supports.Each main landing gear is equipped with one has brake wheel 720x320 mm in size. The wheels of the main landing gear have a pressure of 0.53 MPa. Wheel of tail landing gear support, one non-brake wheel 480x200mm in size. Rear support wheel self-orienting. Wheel track - 2,79 m, wheel base - 11,0 m. To protect the crew of a rough landing, the landing gear provides a reduction in overloads when hitting the ground with a vertical speed of 12 m/s.

The power plant VK-2500P - the helicopter is equipped with two VK-2500P turboshaft engines that transmit torque through the main gearbox to the main and tail rotors. The engines operate independently of each other, which allows, if necessary, to fly with one engine running. Starting the engines is autonomous and is carried out from the onboard auxiliary unit (APU) or from the ground power unit. A dustproof device is used to protect the engines from sand and dust.

The design of the engine is made taking into account the principle of modular assembly, which makes it possible to restore it by replacing modules in operating conditions. The engine is equipped with a full authority digital engine control (FADEC).

Main technical characteristics of VK-2500

Engine modifications I II III
Emergency power/performance (Н=0, V=0):
power (ISA+15oС), h.p. 2.700 2.700 2.700
Takeoff performance (Н=0, V=0):
power (ISA+30/25/15oС), л.с. 2.000 2.200 2.400
Specific fuel consumption (ISA), gr/h.p.*hr, no higher than 220 214 210
Cruising performance (Н=0, V=0):
power (ISA+25/25/15oС), h.p. 1.500 1.500 1.750
Dimensions, mm:
Length 2055 2055 2055
Width 660 660 660
Height 728 728 728
Weight, kg 300 300 300


Auxiliary power unit TA14-130-28 - The APU is designed for air starting the VK-2500P engine on the ground and in flight.

The fuel system is designed to provide fuel to the two main engines. The composition of the fuel system includes: three fuel tanks (two expendable and one common), with a total capacity of approximately 1.900 liters, are placed in a sealed container under the floor of the central fuselage. To increase the flight range of the helicopter, it is allowed to hang additional external tanks.

Transmission HC - The transmission of the helicopter consists of the main gearbox, main rotor brakes, tail shaft, intermediate gearbox and tail gearbox.

Main gear box - designed to change the speed and torque transmission from two turboshaft engines to the main and tail rotors.

Main rotor - the main rotor creates the lift and thrust required for the flight of the helicopter. With its help, the helicopter is controlled relative to the longitudinal and transverse axes. Main rotor five-bladed, with a diameter of 17.2 m. The main rotor blades can withstand the hit of shells of 20-30 mm caliber without destruction.

A variable pitch tail rotor generates thrust that is used to balance the reaction torque from the main rotor and steer the helicopter on course. The tail rotor with a four-blade diameter of 3.84 m, designed according to the principle of X-shaped tail rotor scheme, installed at angles of 45 degrees and 135 degrees, which made it possible to reduce noise significantly. The blades are rectangular in plan, made of fiberglass, the blade chord is 0.24 m.

Flight and navigation equipment - It is designed to provide piloting and solve navigation problems during flights in simple and difficult meteorological conditions at any time of the year and day.

Electronic equipment:

On-board radar station N025: number of detected and tracked targets up to 10, number of simultaneous attacks against targets up to 2. The radar has the ability to detect small targets at a distance of up to 20 km. Frequency range 100-150 GHz.

Helicopter armament:

Gimbaled turret gun NPPU-280-1. Single-barreled automatic gun 2A42-2 caliber 30 mm with 250 rounds of ammunition: multi-purpose, small-caliber artillery weapons of combat vehicles, installed both on infantry fighting vehicles, infantry fighting vehicles and on mobile platforms of Mi-28N, Ka-50, Ka-52 helicopters of all modifications.

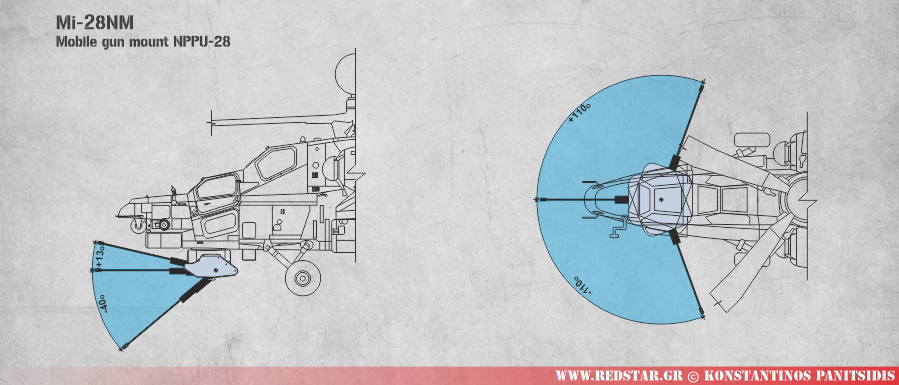

Mi-28NM Mobile gun mount NPPU-28 © Konstantinos Panitsidis


Caliber, mm 30
Rate of fire, rds/min:
- high 550-800
- low 200-300
Weight, kg:
- weapon 115
- cartridge (2A42) 0,86
- projectile 0,4
- cartidge 2А42, ZUBR8
- projectile BT


Means of creating passive interference - to create passive interference, the UV-26 chaff and flare launcher is used.

The helicopter has two UV-26 complexes on the left and right sides for placement, transportation and ejection of 26 mm caliber products of the L050, L055, L056 types.

Options for placing weapons:

Mi-28NM Armament options © Konstantinos Panitsidis


 Weapon characteristics.

Guided missile ATGM «Shturm» ATGM «Ataka»
Caliber, mm 130 130
Average speed, m/s 420 400
Range, km 5 5,8
Penetration, mm 650 880 behind reactive armour
Weight, kg:
- launch weight 35 42,5
- warhead 5.4 7.4
Warhead type HAET (High-explosive anti-tank), RHA (rolled homogeneous armour). HAET (High-explosive anti-tank), RHA (rolled homogeneous armour).
Guidance system Radio command and semi-automatic command Radio command and semi-automatic command
Ammunition, pcs. 4 to 16 4 to 16



Mi-28NM Havoc © Konstantinos Panitsidis



Multipurpose attack helicopter
Two VK-2500P turboshaft engines
Power, h.p. (kW)
2 x 2.499 (1.838)
Length, m
Main rotor diameter , m
Tail rotor diameter, m
Wing span, m
Height, m
Empty kg
Normal take-off, kg
Maximum take-off, kg
Internal fuel, kg
Weight of transported fuels with exterior reservoirs, l
4 x 460
Payload, people
up to 2
Warload, kg
Maximum speed, km/h
Cruising speed, km/h
Range, km
Combat range, km 450-500
Service ceiling, m
Static ceiling, m
Rate of climb, m/min 816
Maximum overload, g (more) 3
ARMAMENT 1 x 30 mm cannon 2A42 with 300 rounds.
Hardpoints: 4
- 4 Anti-tank missile Shturm and 2 launcher UB-20-57 (20 x 55 mm) or UB-20-80 (20 x 80mm) or 2 x NUR 130 mm.
Available: 2x2Air-to-air missile R-60 or air-to-ground Izdeliye 305, pods with 23 mm cannons or 30 mm grenade launchers or 12,7 mm or 7,62 mm machine-guns, or 500-kg bombs, or mine dispersers.
Under wings -16 Anti-tank missile Vichr.
