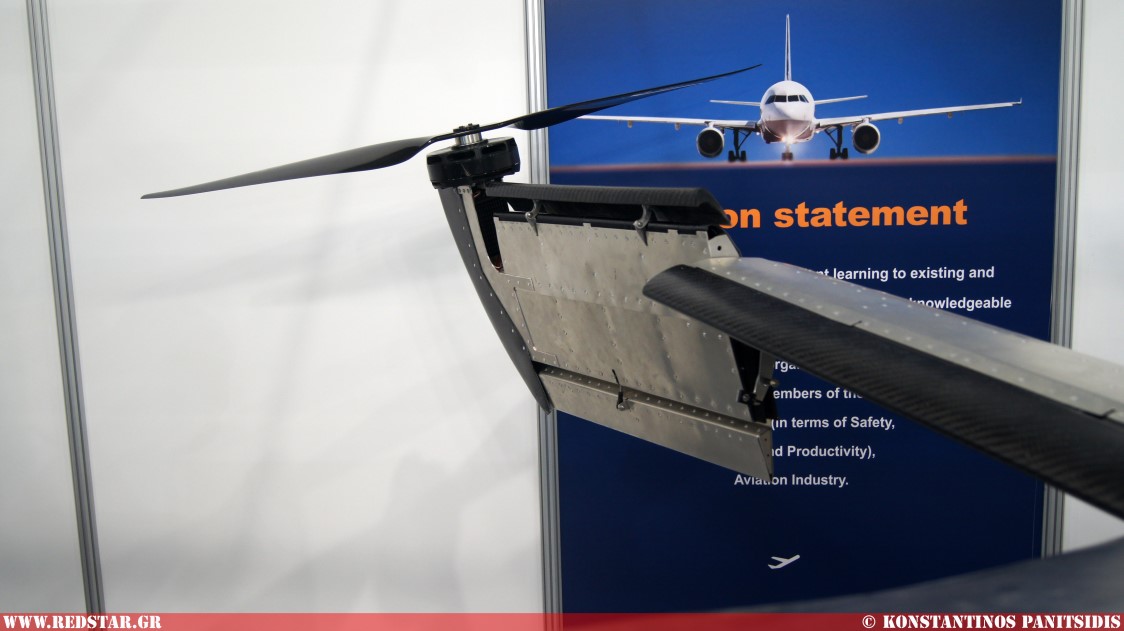

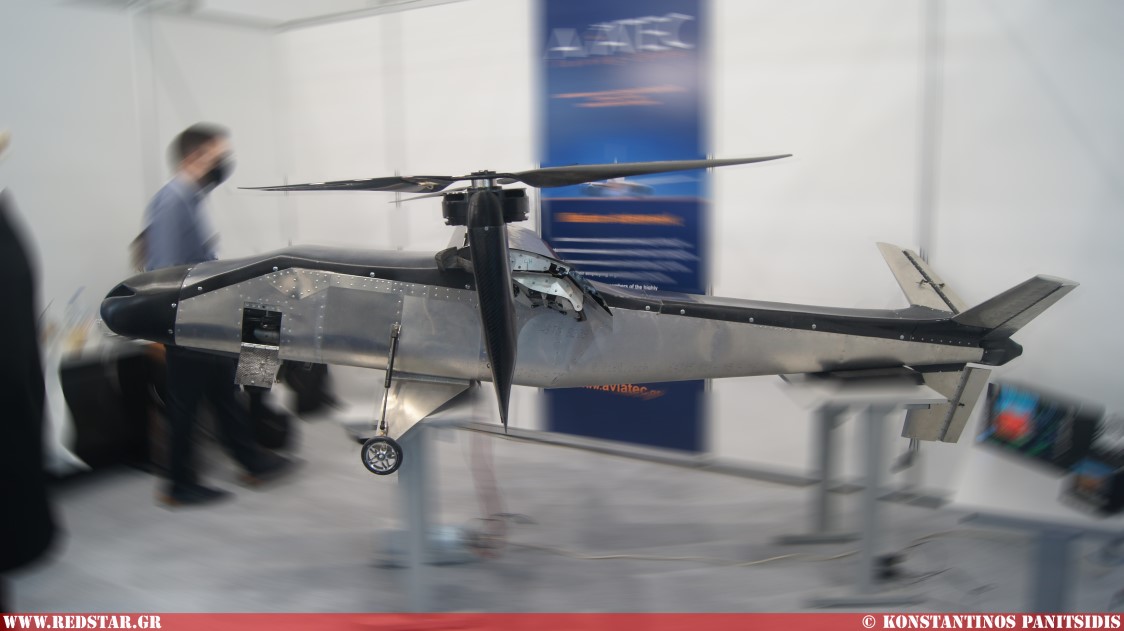

A unique multi-role Unmanned Aerial Vehicle System (UAV) with special design to fulfill a plethora of military and civilian operational needs. The innovative Tilt Rotor design coupled with a powerful hybrid power plan system combines the majority of the advantages of a fixed-wing aircraft and a helicopter and ensures a maximum payload of 20 kg.

Multi-role capabilities: Military

-Target Surveillance and Recognition
-Small Explosives Drop
-Armor Supply
-Battle Damage Assessment
-Foreign Aircraft Flight Obstruction

Civil

-Region Surveillance
-Fast Object Transport
-Aero Photography

Agriculture

-Surveying
-Crop Health Monitoring
-Soil Sampling and Analysis

Security

-Border Surveillance
-Suspicious Activity Detection and Tracking
-Area Control & Command

Search and rescue

-Search and Rescue Assistance
-Disaster Assessment
-Medical Assistance
-Food and Equipment Transport

Research

-Weather Monitoring
-Sensor Data

Design characteristics

Modified Riblett Airfoil for Optimum Performance

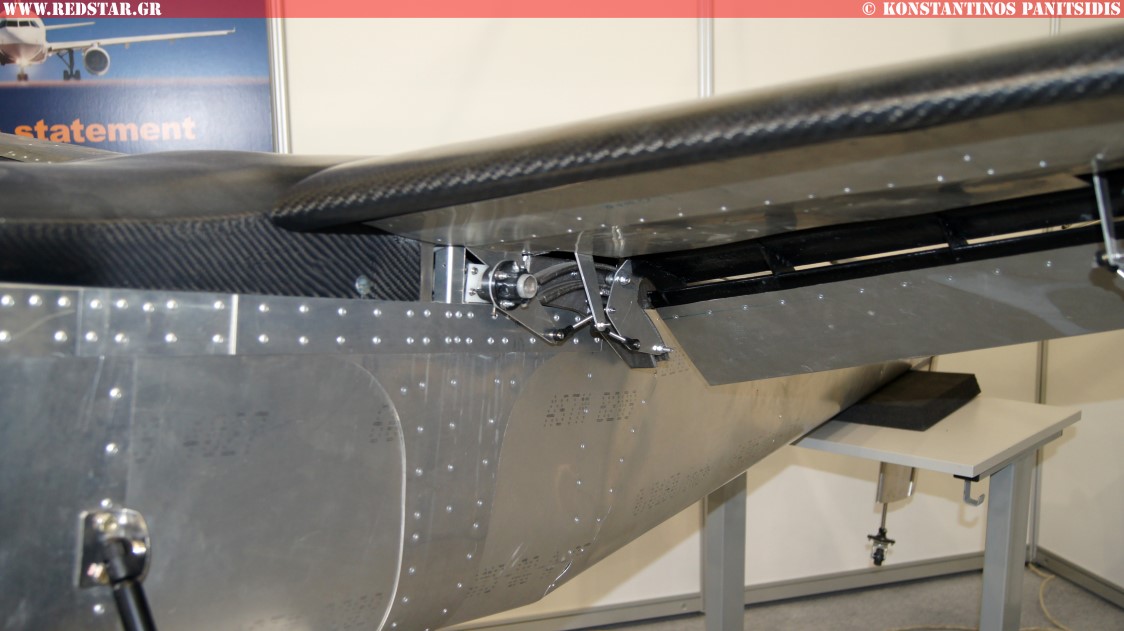

High Lift Devices For Low Stall Speed
Hybrid (Batter/Fuel) Power Plant For Maximum Range and Endurance
V-Tail Section For Optimum Maneuverability

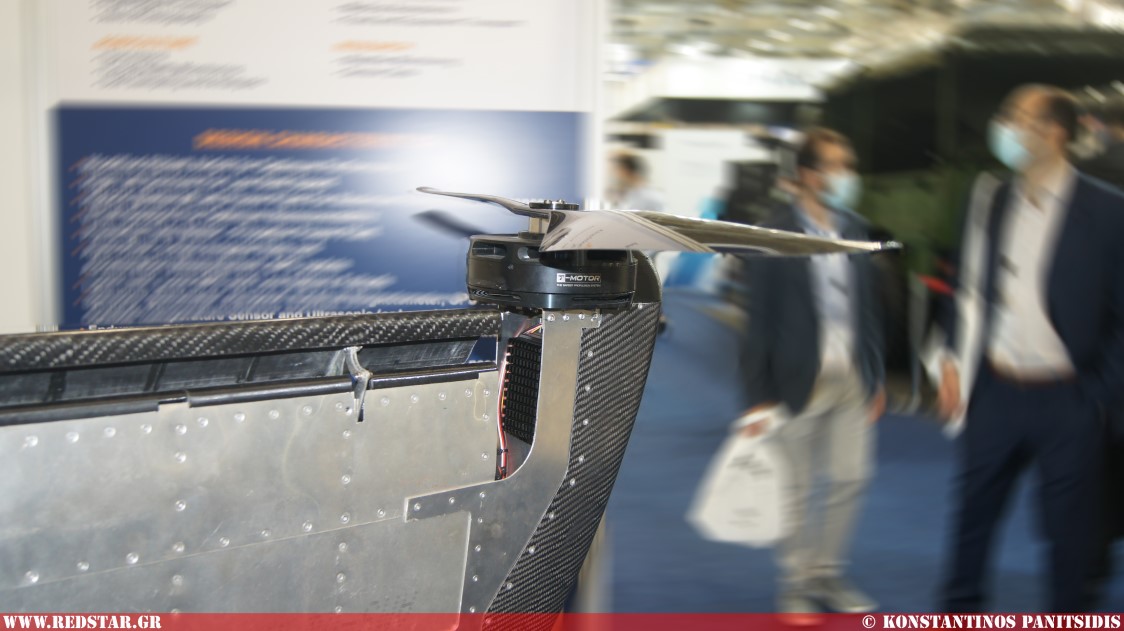

Power Twin Motor-Propeller Power Plant
Auto pilot, 3-Axis Angular Rate and Acceleration Measurement, GPS update
Loss Link, Loss GPS and Low Battery Failsafe
Sensors: Barometer, Airspeed, External Magnetometer, GPS Receiver, Outside Temperature Sensor and Ultrasonic (or Laser) Altimeter.
Model may be upscaled or downsized according to market needs.

Extra equipment / payload capabilities

Uniform payload compartment
High resolution camera
Payload carrying crane
Real time data transfer
Video recording equipment
Remote control equipment (telemetry)
Mission equipment modular design.
