It is one light single seat, single-engine helicopter with a Lycoming VO-540-B1B3 piston engine with a power of 308 hp. The first flight was made in 1966. All helicopters were joined to the 359th Squadron (Public Services Air Support) and were used mainly in agricultural work (spraying, spraying liquid / dry chemicals, etc.). All helicopters have been decommissioned from the Hellenic Air Force.
Patches
| 359 Public Services Air Support Unit |  |
Technical specifications
|
DESIGNER
|
Agusta - Bell
|
|---|---|
|
COUNTRY
|
USA, Italy
|
|
TYPE
|
Multipurpose helicopter
|
|
CREW
|
1
|
|
POWER-PLANT
|
One Lycoming VO-540-B1B3
|
| Power, h.p. | 1x308 (284) |
|
DIMENSIONS
|
|
|
Length, m
|
9,90
|
|
Main rotor diameter , m
|
11,32
|
|
Tail rotor diameter, m
|
1,78
|
|
Height, m
|
2,72
|
| WEIGHT | |
| Maximum take-off, kg | 1.338 |
| Normal take-off, kg | - |
| Empty aircraft, kg | 827 |
| Internal fuel, l | 216 |
| Payload, kg | |
| - passengers | 2 |
|
PERFORMANCE
|
|
|
Maximum speed, km/h
|
169
|
|
Cruising speed, km/h
|
143
|
| Economic speed, km/h | - |
|
Rate of climb, m/min
|
244 |
|
Service ceiling, m
|
3.415
|
|
Static ceiling, m
|
2.345
|
| Range, km | - |
| Combat range, km | - |
| ARMAMENT | Doesn't have (defensive). |

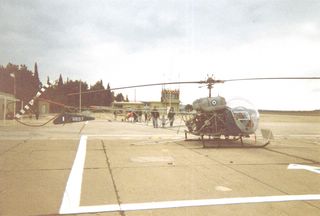

Photos Agusta-Bell 47G-3B-2
